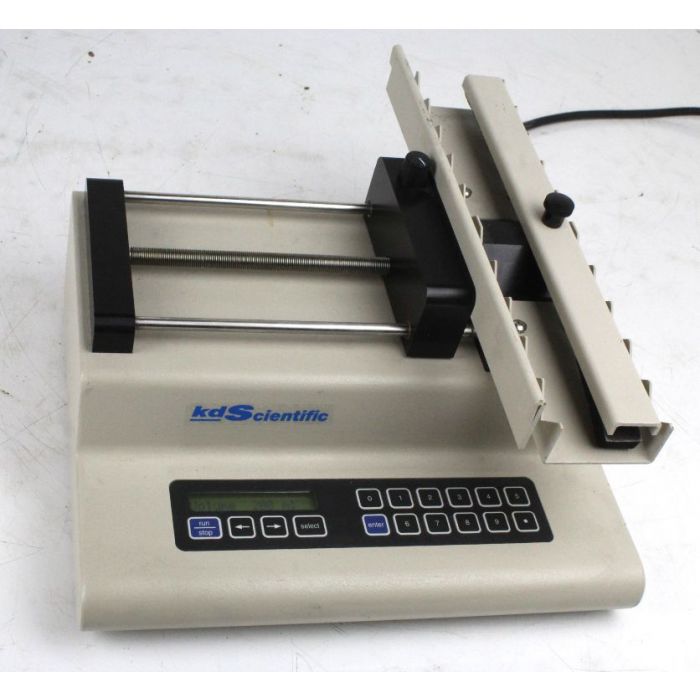

KDS 220 Legacy Multi-Syringe Infusion Pump - 220 VAC



KDS 220 Multi-Syringe Infusion Pump: Ideal for applications requiring multiple syringes.



Max. No. of Syringes Ten
Syringe Size One to ten syringes, 10 µl - 10 ml
             One to six syringes, 20 ml - 60 ml
             One to four syringes, 100 ml - 140 ml

Dimensions 11 x 9 x 5.5 in.
           28 x 23 x 14 cm
Weight 9.5 lb (4.3 kg)
Linear Force 40 lb (18 kg)
Advance Per Microstep 0.165 micron (1/16 step)
Max Step Rate (1/2 Step) 1600/sec
Min Step Rate 1/100 sec
Accuracy ±<1%
Reproducibility ±0.1%



Serial# 17364



PDF Manual
