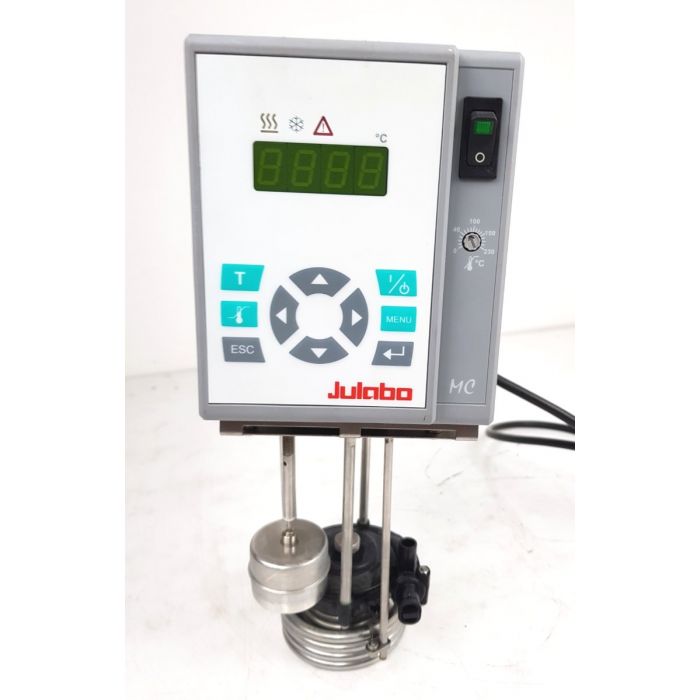

Julabo MC Immersion Heater and Refrigeration Controller

Julabo MC Immersion Heater and Refrigeration Controller

Electronically adjustable pressure pump capacity ′PPC′
PID 2 temperature control with drift compensation
Bright Multi-Display (LED) with resolution to 0.1°C
Pump pressure 0.45 bar
Keypad setting for actual value, 3 set points, upper and lower warning functions and audible signal (interval tone)
Online communication with integrated RS232 interface
High temperature cut-out, adjustable
Low liquid level protection: complete shut-down with continuous tone
Absolute Temperature Calibration, 3 point: Simple correction of temperature registered on the internal and external measuring point

For any bath tanks up to 50 L. With bath attachment clamp for wall thickness to 26 mm

11-16 L/min pump flow
20-200 °C temp. range
±0.01 °C temp. stability
heater capacity 2 kw

PDF Manual
Serial No: 10084398
Power: 193V to 253V AC, 50Hz
