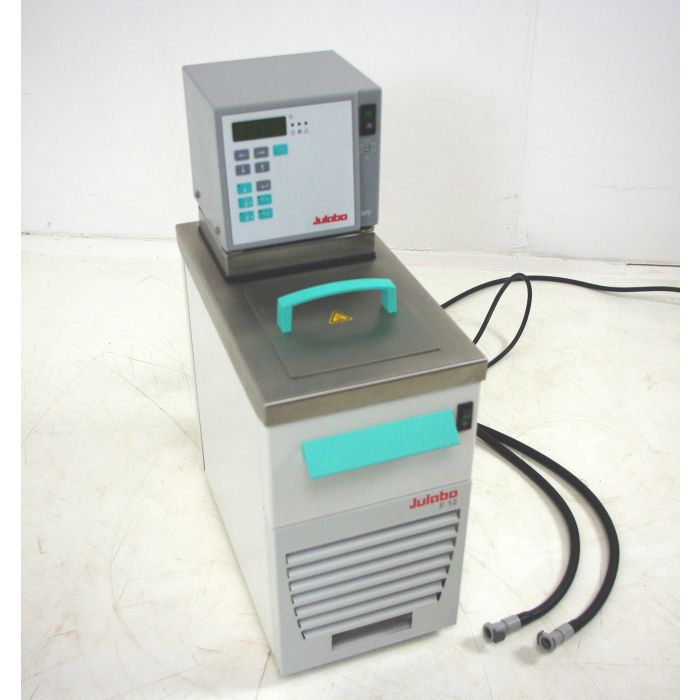

Julabo F12-ED Refrigerated/Heating Circulator

Julabo F12-ED Refrigerated/Heating Circulator
The Base for routine laboratory applications.

With Operating Manual

JULABO Refrigerated & Heating Circulators for heating and cooling are suitable for external temperature tasks and for temperature applications directly in the bath. Powerful circulating pump systems and high heating and cooling capacities guarantee short heat-up and cool-down times. The inevitable dust accumulation that occurs in refrigeration systems is solved by means of an easily removed venting grill, which allows for easy cleaning. Depending on the model, the units are equipped with handles or castors for an easy transportation. All models have a drain screw on the front allowing the fluid to be drained easily. The compact assembly of each unit enables a space to be saved in the laboratory.

Your advantages:

•     Bright LED temperature display, resolution 0.1 °C
•     Keypad for setpoint, switches automatically to the actual value
•     PID1 temperature control
•     Adjustable high temperature cut-out / dry-running protection

Technical Data:

• Model series     Economy
• Category     Refrigerated - Heating Circulators
• Working temperature range (°C)     -20 ... 100
• Temperature control     PID
• Temperature stability (°C)     ±0.03
• Setting / display resolution     0.1 °C
• Temperature Display     LED
• Heating capacity (kW)     2
• Cooling capacity (Medium Ethanol)
• 20°C     0.16 kW
• 0°C     0.1 kW
• -20°C     0.02 kW
• Pump capacity flow rate (l/min)     15
• Pump capacity flow pressure (bar)     0.35
• Bath opening / bath depth (W x L / D cm)     13 x 15 / 13
• Pump connections     M10x1
• Barbed fittings diameter (inner dia. / mm)     8 / 10
• Filling volume (liters)     4.5
• Refrigerant     R134a
• Ambient temperature     5...40 °C
• Dimensions W x L x H (cm)     20 x 36 x 56
• Weight (kg)     22
• Classification according to DIN12876-1     Classification I (NFL) according to DIN 12876-1
• Included with each unit     2 each barbed fittings for tubing 8 and 10 mm inner dia. (pump connections M10x1 female).
• Cooling of compressor     Air

This instrument is Used in very good working condition
