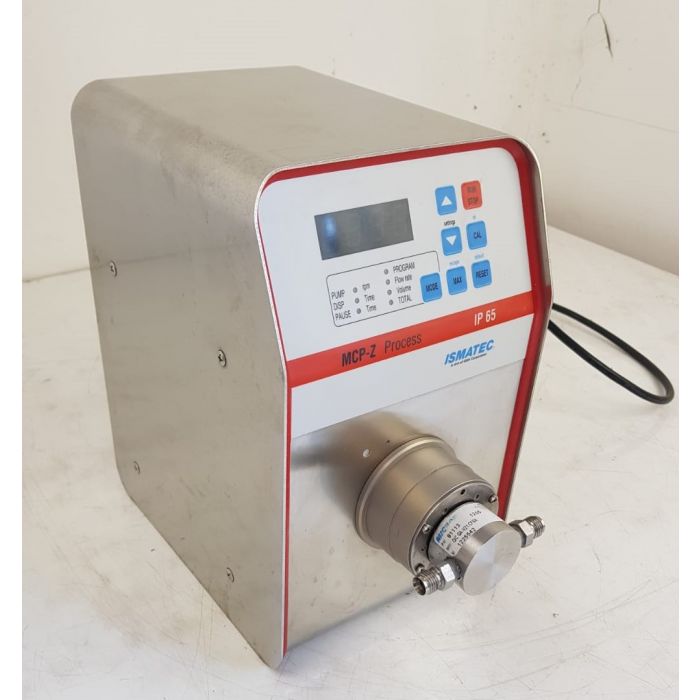

Ismatec ISM918A MCP-Z Process Drive and Pumphead

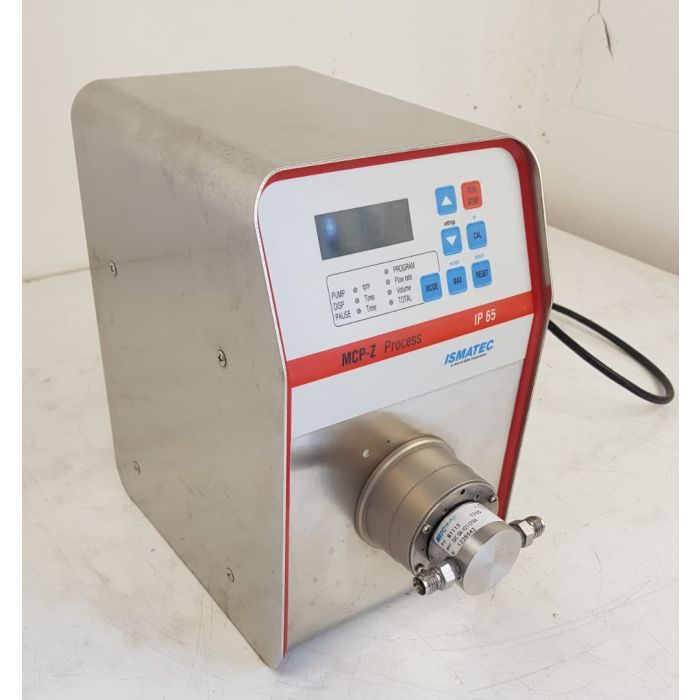

Ismatec ISM918A MCP-Z Process Drive and Pumphead

IP65-rated "washdown" drive

Micropump GA 81113 pump head

Flow rates
1 – 7020 ml/min (depending on mounted pump-head)

Operating panel
7-button membrane key-pad
LED display

Program memories
4

Programming (similar to PLC)
4 individual programs (command sequences) created in a PC can be stored in the pump. The user can run the programs using the pump as a stand-alone unit.
Operating modes
- pumping by drive speed (rpm)
- pumping by flow rate (ml/min)
- dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
- dispensing by volume within a pre-set time
- interval dispensing by volume with a pause
- interval dispensing by time with a pause
- setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)

Calibrating functions - for flow rate (ml/min)
- for dispensing volume (ml)
Motor speed 60 – 6000 rpm
Speed setting digital speed setting (resolution 1 rpm)
Speed control closed loop control for pressure independent speed
RS232 interfaces - RS232 "in" - for operation controlling via PC
- RS232 "out" - for cascading up to 8 pumps
Analog input Speed control (0–5 or 0–10V / 0–20 or 4–20mA)
Analog output Speed monitoring (0–10VDC or 0–12 kHz)
Digital input (TTL level) Start/Stop, autostart, 2 universal inputs
Differential pressure max. 5.2 bar / 75.4 psi (depending on pump-head)
Motor type DC motor
Power consumption 150 W
Power supply 100 – 230 VAC / 50 – 60 Hz
Protection rating IP 65
Depth / Width / Height 260 x 160 x 262 mm (10 ¼" x 6 1/3" x 10 1/3")
Weight 6.9 kg (16 lb)

Serial# 12639-00156
