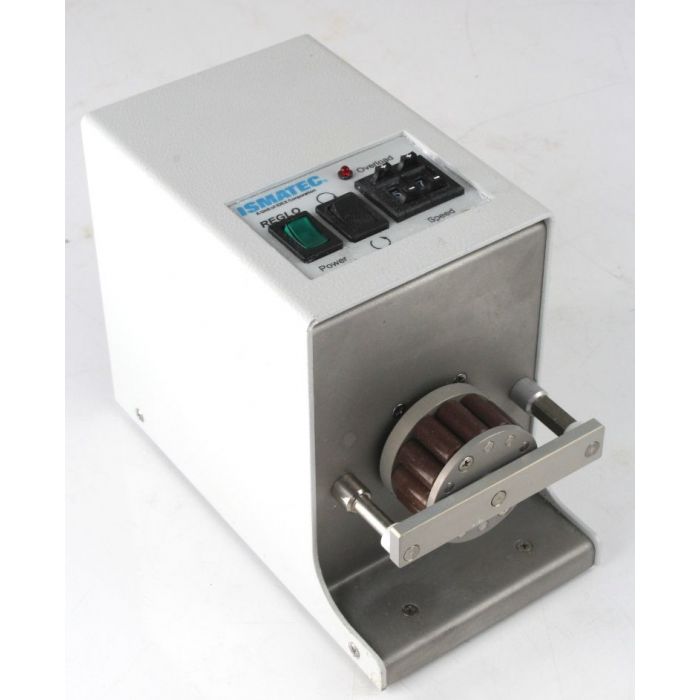

Ismatec ISM795 REGLO Analog 2-Ch Var-Speed Peristaltic Pump

Ismatec ISM795 REGLO Analog 2-Ch Var-Speed Peristaltic Pump



Easily adjust speed of compact multichannel pump



Start/stop pump or change flow direction via contact closure (DB15 female)



Monitor speed through frequency output



These space-saving pumps provide up to four pumping channels while using very little benchtop space. Self-lubricating, Ertalyte® rollers provide consistent flow with reduced tubing wear. Use Click’n’go™ minicartridges for consistent results. Reverse flow direction with the flip of a switch. Select two- or four-channel pumps; twelve roller pumps provide smooth, even flow.



Speed is adjustable in 1% steps (0 to 99%). Control speed remotely with an analog input signal (0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA, or 4 to 20 mA).



Choose optional minicartridges with adjustable occlusion to manually vary pressure on each channel. Pumps are designed to be used with 3-stop tubing



Product Type  Peristaltic Pump
Power (VAC) 230
Power (Hz) 50/60
Input  0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA
Max flow rate (mL/min) 34
Flow range (mL/min) 0.007 to 34
Max pressure (bar) 1.5
Max pressure (psi) 22



Serial # 03641-0034
         03641-0033



115/230 V



Dims 18cm (D) x 10cm (W) x 14cm (H)
