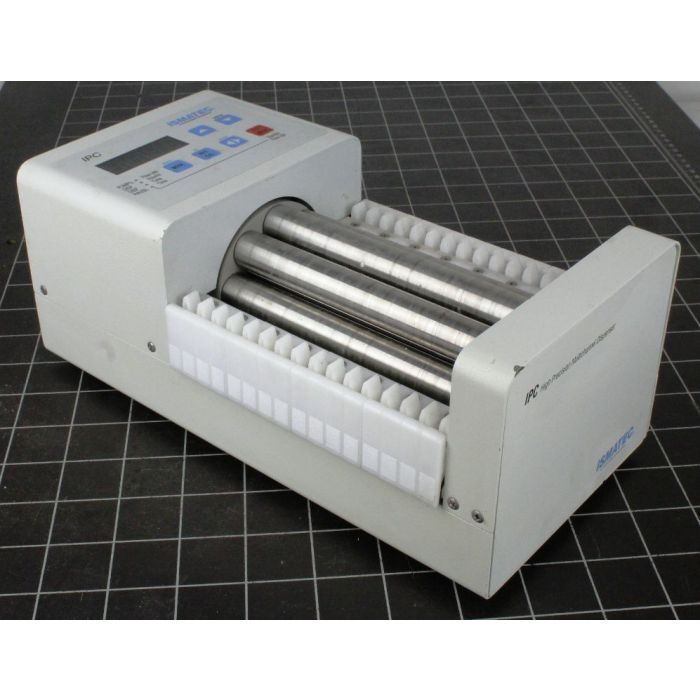

Ismatec IPC (ISM933C) Digital Peristaltic Pump

Ismatec IPC (ISM933C) Digital Peristaltic Pump



16-Channel



Planetary drive for less pulsation and longer tubing life
Smooth rotation and accurate liquid flow provided by eight SS rotors
Easy repeatability with four-digit LED
Simple to use—automatic occlusion cartridges provide reproducible results
Control via keypad, computer, or remote control



These multichannel programmable pumps feature planetary gears that drive eight stainless steel rollers in unison for smooth rotation and accurate liquid flow. The four-digit LED display shows flow rate or rpm when pump is running. Use the MAX button to instantly increase speed for priming or flushing without disturbing your programmed settings.



Ideal for continuous pumping or for dispensing in any of five modes:
- Flow rate: 0.0004 to 44 mL/min (depending on tubing size used and model used)
- By time: 0.1 seconds to 999.9 hours
- Batches: set delay between dispensed volumes
- Drip-free: program back-steps to prevent drips
- Volume displays in mL or µL



Pumps feature analog input and output controls, as well as an RS-232 interface for control by a computer

click n go cassettes available from Cole-Parmer

Control Type Variable-Speed Digital
Min RPM 0.4
Max RPM 45
Number of Channels 16
Max Flow Rate (mL/min) 44
Min Flow Rate (mL/min) 0.002
Max Flow Rate Per Channel (mL/min) 44
Min Flow Rate Per Channel (mL/min) 0.002
Tubing 2-Stop Tubing



Serial# 03761-00059



PDF Manual



Dims 300 (D) x 145(W) x 130(H) mm



120-240 Volt
