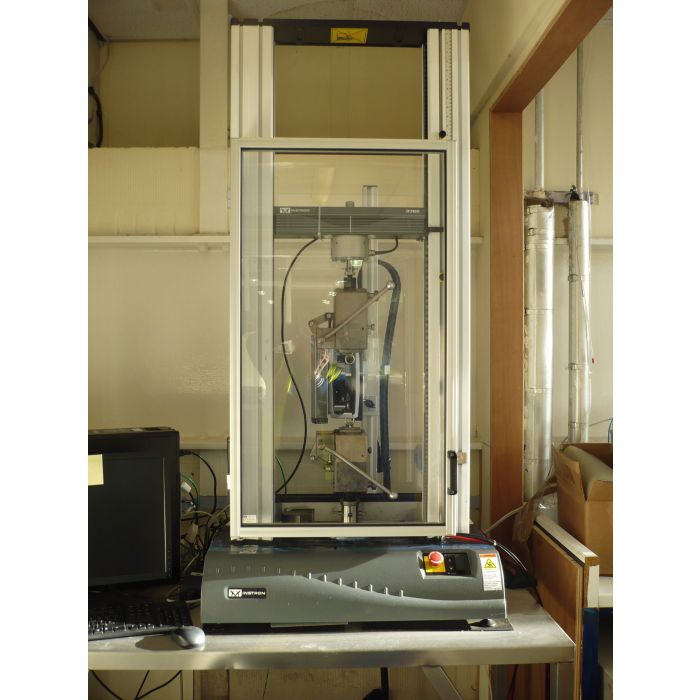

Instron 3366 Tensile Tester

Instron 3366 Tensile Tester
Full System including PC and Software

Load Cell 10 kN
Max speed 500mm/min
Max force at full speed 10kN

Pre owned but in new condition, in storage for 4 years.

Currently packed in 2 plywood packing cases

The Instron® 3300 Series addresses the needs of standardized and routine
testing, providing the user Instron quality at the most affordable price. The
3360 dual column, tabletop, testing systems are suited for tension, compression,
peel, flex, and other applications with load requirements ranging from 5 to 50 kN.
They are typically used for quality control and production testing. Four models are
available in load capacities of 5, 10, 30, and 50 kN.
Instron Quality at an Affordable Price
Our attention to every element of the system is what separates Instron from
other testing equipment suppliers and allows us to con
fidently report the accuracy, repeatability, and reproducibility of our results.

• Automatic recognition and calibration of load and strain transducers and
    verification performed by factory-trained
field service engineers
• Preloaded ballscrews, precision guidance columns, and a symmetrical
    drive system improve frame stiffness and alignment
• Extensive range of accessories to meet test requirements in almost any
    application or industry: plastics, metals, biomedical, composites, elastomers,
    components, automotive, aerospace, textiles, and more.
• Self-diagnostics expedite troubleshooting and minimize downtime
• All testing systems include choice of load cell
• Full one-year warranty on parts and labor

Start Testing in Two Steps: Open a Method, Press Start
With multiple operators, varying skill levels, and continuous training needs, you
need a user interface that is simple to learn. Instron Bluehill®
Lite Software is designed to meet the demands of everyday applications and testing standards
used in a wide variety of industries. Bluehill Lite provides all the capabilities you
need to handle basic tensile, compression, flexure, peel, tear, friction, and simple cyclic test requirements quickly and efficiently. Tests are started with just two
steps, and test control, data acquisition, plotting, calculations, and reporting are
performed automatically. To further assist the operator, the Prompted Method
guides operators through repetitive test procedures with step-by-step instructions.

Included:

1 EXTENSOMETER FOR INSTRON
CALIBRATION CASE FOR EXTENSOMETER
2 GLASS PROTECTION SHIELDS FOR INSTRON
ONE PC,MONITOR,KEYBOARD AND MOUSE
1 BOX CONTAINING MANUALS & SOFTWARE DISCS
1 BOX CONTAINING INSTRON PARTS, GRIPS , BOLTS SCREWS & SMALL 2ND EXTENSOMETER
1 BOX CONTAINING LEADS & SMALL INSTRON PARTS
2 SMALL STEEL JAWS FOR INSTRON TESTING
3 LARGE STEEL JAWS FOR INSTRON TESTING
1 STEEL NOSEPIECE FOR INSTRON TESTING
2 FOOTCOMPRESSORS AND LEADS
2 EXTENSOMETER BARS


Dimensions: H158 x W75.6 x D70.7 cm
Weight: 110Kg
Power: 300VA
