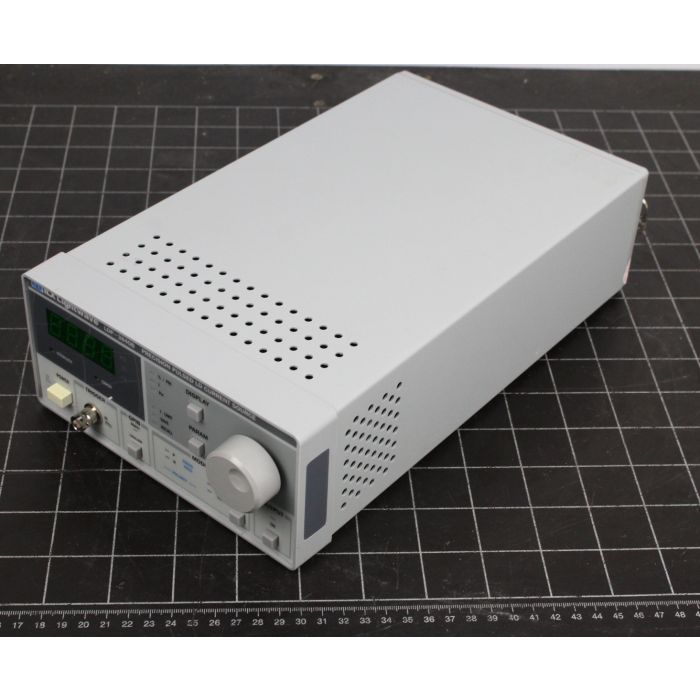

ILX Lightwave Laser Diode Driver, Pulsed

ILX Lightwave Laser Diode Driver, Pulsed, 3A, 10V, GPIB

Model: LDP-3840B

The LDP-3840B-120V Precision Pulsed Laser Diode Driver is a microprocessor-based instrument specifically designed for pulse testing and characterizing laser diodes. The LDP-3840B provides up to 3 A of peak pulse current with adjustable pulse widths from 100 ns to 10 ms.

Careful attention to design for clean pulses at laser diode load levels provides a low noise pulsed current with fast rise times while maintaining overshoot of less than 5%. Testing and characterization can be automated with the LDP-3840B through the GPIB/IEEE interface.

For basic system integration, a trigger can be used to control pulses and initiate corresponding measurements without a command program. Like all ILX Lightwave® laser diode control instruments, the LDP-3840B incorporates laser diode protection and safety features such as current limits, output shorting circuits, AC line filters, and double-shielded transformers to help suppress laser damaging transients. For virtual instrument programming, LabVIEW® instrument drivers are available free of charge. LabVIEW® instrument drivers can be downloaded from the Literature and Downloads tab on this page.
The LDP-3840B has a 100-120 VAC or 220V-240V power requirement.

The 3 ohm output cable and LPB-380 Laser Pulse Board are not included

Laser Compliance Voltage 10 V
Computer Interfaces GPIB
Power Requirements 100-120 VAC or 220 -240V AC
Laser Current Resolution 1000 µA
Laser Current Accuracy ±2.5% of FS
Laser Output Noise/Ripple High Bandwidth 500 µA

Duty Cycle 0 to 10 %
Pulse Width 100 ns to 10 ms
Pulse Repetition Rate 1 μs to 100 ms
Rise/Fall Time <50 ns
Display Type 4-digit Green LED
Weight 3.6 kg

Serial No: 38403523

With original manual
