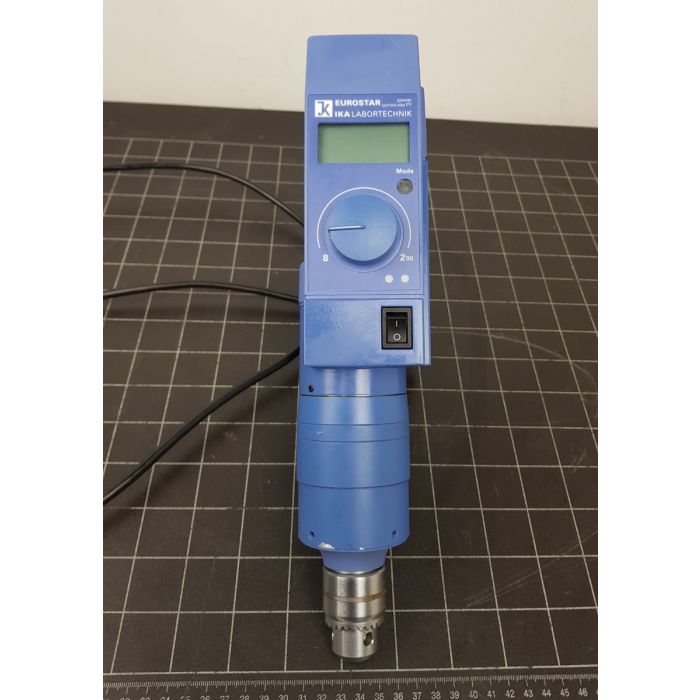

IKA EUROSTAR power control-visc P7 Overhead Stirrer

IKA EUROSTAR power control-visc P7 Overhead Stirrer

The EUROSTAR series overhead stirrers are suitable for use with various stirring tools for stirring and mixing fluids with low and high viscosities.

Laboratory stirrer with a high torque, 7-fold transmission reduction for processing highly
viscous media.
- Constant speed by microprocessor control
- Digital display presents rated - / actual speed
- Infinitely adjustable without gear shifting
- Slim casing
- Quiet operation
- Safety circuit
- Non-locking, overload capabilities
- Enhanced safety as a result of smooth start
- Integrated torque trend display for viscosity control
- Analog interface for recording speed and torque
- RS 232 interface
- Agitator shafts are not push-through

Speed range under nominal load: 1/min 8 - 290
Clamping chuck clamping range: 0.5‑10 mm
feature CE compliant
max. torque 380 Ncm
max. stirring quantity - water: ltr 40
Viscosity max. [mPas] 150000
Dimensions (W x D x H):mm 80x330x190
weight 4.8 kg

Power: 230V 50/60 Hz, 75W
Serial No: 00.235226

pdf manual
