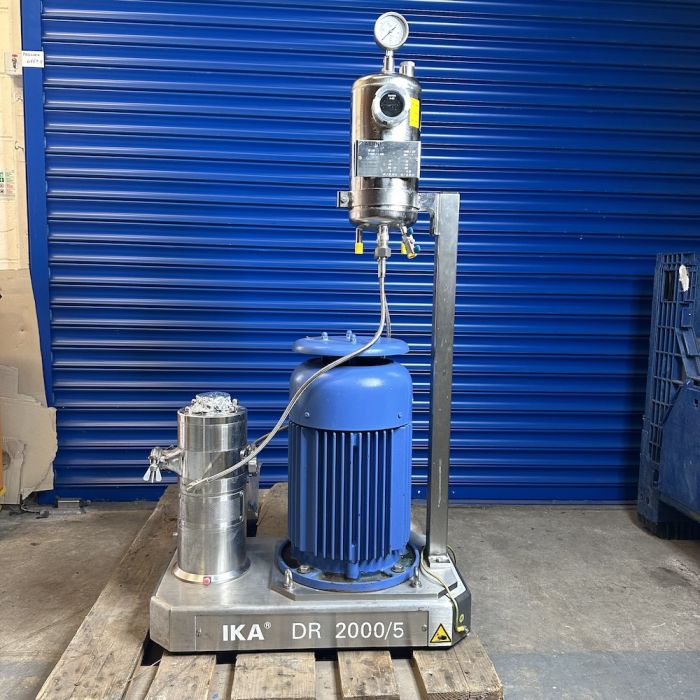

IKA DR 2000/5 ATEX Dispax Reactor

IKA DR 2000/5 ATEX Dispax Reactor

The IKA DISPAX-REACTOR DR 2000 is a three-stage high shear inline dispersing machine used for the production of very fine emulsions and suspensions. Shear forces that occur in the working chamber produce a drastic increase of mass transfer and accelerate the dissolving rates of mono and macromolecular substances. Three rotor-stator combinations (generators) in a series ensure small- droplet or particle size and a very narrow distribution spectrum. This process promotes a long stability of mixtures in a single pass, especially when working with emulsions.

Images form part of the description

Specification

• Motor power: 7.5kW
• Flow rate: 2500 l/hr
• Motor speed: 6000rpm
• Circumferential speed: 23m/s

Location D2
