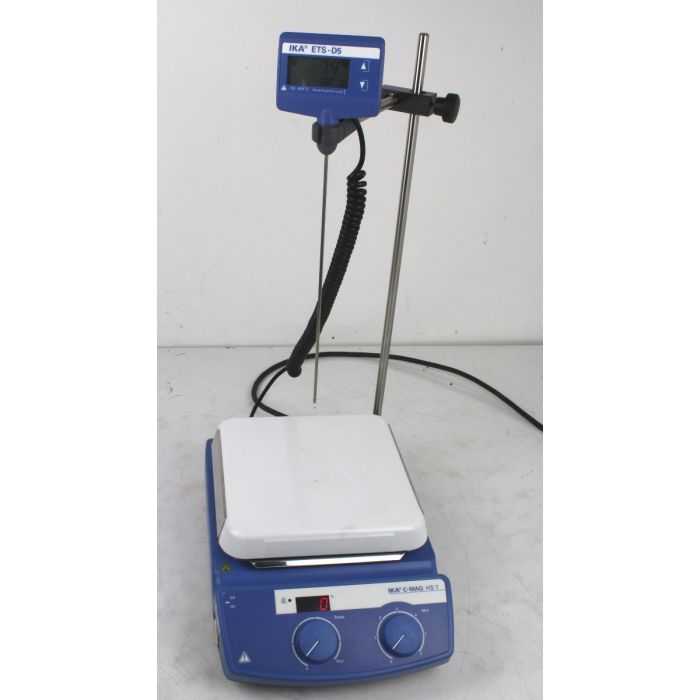

IKA C-MAG HS 7 Magnetic stirrer with heating and ceramic heating plate & ETS-D5 Electronic contact thermometer
Sold
Wanted
SKU
P011
IKA C-MAG HS 7 Magnetic stirrer with heating and ceramic heating plate & ETS-D5 Electronic contact thermometer
Powerful motor for stirring quantities of up to 10 l (H2O)
Fixed safety circuit of 550 °C
Hot Top indicator >> hot surface warning to prevent burns!
Exact temperature setting via digital display (LED)
Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
Digital error code display
Elevated control panel for protection against leaking liquids
Fixed safety circuit of 550 °C
Hot Top indicator >> hot surface warning to prevent burns!
Exact temperature setting via digital display (LED)
Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
Digital error code display
Elevated control panel for protection against leaking liquids
Speed control scale 0 - 6
Speed range 100 - 1500 rpm
Stirring bar length max. 80 mm
Heat output 1000 W
Heating temperature range 50 - 500 °C
Connection for ext. temperature sensor ETS-D5 (sensor not included)
Fixed safety circuit 550 °C
Set-up plate material ceramic
Set-up plate dimensions 180 x 180 mm
Dimensions (W x H x D) 220 x 105 x 335 mm
Weight 5 kg
Speed range 100 - 1500 rpm
Stirring bar length max. 80 mm
Heat output 1000 W
Heating temperature range 50 - 500 °C
Connection for ext. temperature sensor ETS-D5 (sensor not included)
Fixed safety circuit 550 °C
Set-up plate material ceramic
Set-up plate dimensions 180 x 180 mm
Dimensions (W x H x D) 220 x 105 x 335 mm
Weight 5 kg
Serial# 07.438629
ETS-D5
With optimised PID control
RESET function
Incl. stainless steel sensor H 62
For all magnetic stirrers with contact thermometer bushing according to DIN 12878, class 2 e.g. IKA, Heidolph and Corning with adapter AD-C1)
With 3 patented operating modes
Ensures perfect temperature control in liquid mediums, without overshooting the set temperature, even in the case of quick heating
RESET function
Incl. stainless steel sensor H 62
For all magnetic stirrers with contact thermometer bushing according to DIN 12878, class 2 e.g. IKA, Heidolph and Corning with adapter AD-C1)
With 3 patented operating modes
Ensures perfect temperature control in liquid mediums, without overshooting the set temperature, even in the case of quick heating
Serial#06.109026
PDF Manuals
Support Rod and clamps included
PDF Manuals
Support Rod and clamps included
| SKU | P011 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
