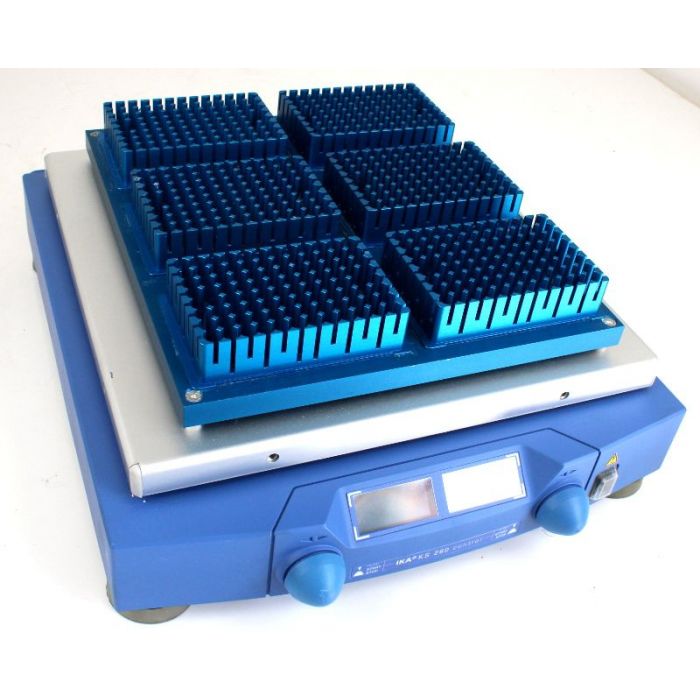

IKA 260 control Shaker with heating/cooling microplate attachment

IKA 260 Control Shaker with heating/cooling microplate attachment

Compact, flat shaker with ideal swivel motion, for a maximum shaking weight of 7.5 kg.

•     Electronic adjustment of speed and timer
•     Digital display makes it possible to read the speed, timer function and operating modes
•     Electronic time switching clock: 0 - 9 h 59 min or continuous operation (endless)
•     With integrated end point positioning (for automated robot-controlled sampling)

Type of movement    orbital
Shaker diameter    10 mm
Permissible shaking weight (incl. attachment)    7.5 kg
Motor rating input    45 W
Motor rating output    10 W
Permissible ON time    100 %
Speed min (adjustable)    10 rpm
Speed range    0 - 500 rpm
Speed display    LCD
Timer    yes
Timer display    LCD
Time setting range    1 - 599 min
Operating mode    timer and continuous operation
Shaking table lock    yes
Dimensions (W x H x D)    360 x 150 x 420 mm
Permissible ambient temperature    5 - 50 °C
Permissible relative humidity    80 %
Protection class according to DIN EN 60529    IP 21
RS 232 interface    yes
Analog output    yes
Voltage    220 - 240 / 100 - 120 V
Frequency    50/60 Hz
Power input    45 W

PDF Manual
Serial# 00.272872
