E363xA Series of programmable DC power supplies gives you the performance of the system power supplies at a decent price. All models provide clean power, excellent regulation and a fast transient response with built-in GPIB and RS-232 interfaces. The E363xA Series is designed to meet the requirements of the most
demanding applications in R&D design verifications, production testing, and QA verifications with traditional quality and reliability which you can count on.

Excellent performance you can trust
With the 0.01% load and line regulation, the E363xA Series can maintain a steady output when power line and load changes occur. The power supplies specify both normal mode voltage/current noise and common mode current noise. The low normal mode noise specification assures clean power for precision circuitry applications, and the low common mode current provides isolation from power line current injection.

Remote interface
If you have an IEEE-488 card or RS-232 in a PC, these power supplies will work for you.
Every model comes equipped with both GPIB and RS-232 as standard. All programming is done in easy-to-use SCPI (Standard Commands for Programmable Instruments).

Front panel operation
A knob and self-guiding keypads allow you to set the output at your desired resolution quickly and easily. You can store and recall for up to three complete setups using the internal non-volatile memory. The output on/off button sets the output to zero.

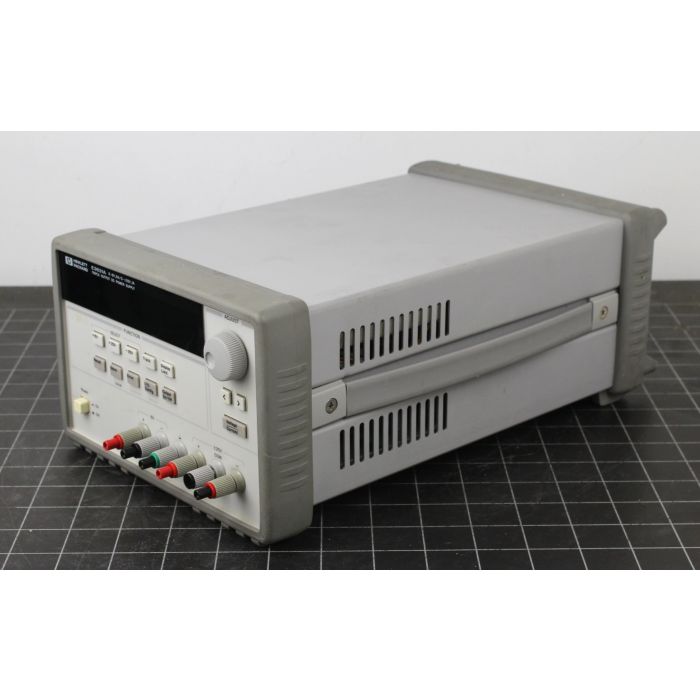

E3631A triple-output power supply
This famous 80-watt triple output supply offers three independent outputs: 0 to 6 V/5A, 0 to +25V/1A and 0 to –25V/1A. The 6 V output is electrically isolated from the ±25 V supply to minimize any interference between circuits under test. The ±25 V outputs can be set to track each other.

DC output 1. 0 to +6 V, 2. 0 to +25 V, 3. 0 to +25 V,
Rating (0 to 40 ºC) 1. 0 to 5 A 2. 0 to 1 A 3. 0 to 1 A

Programming Accuracy at 25°C ±5°C
Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV
+ Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
Ripple & Noise (20 Hz to 20 MHz)
Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-p
Normal-mode current: <500 µA rms, <500 µA rms, <2 mA rms
Common-mode current: <1.5 µA rms, <1.5 µA rms, <1.5 µA rms
Readback Accuracy at 25°C ±5°
Voltage: 0.05% + 10 mV, 0.05% + 10 mV, 0.1% + 5 mV
Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA

Dimensions 213 x mm W x 133 mm H x 348 mm D
