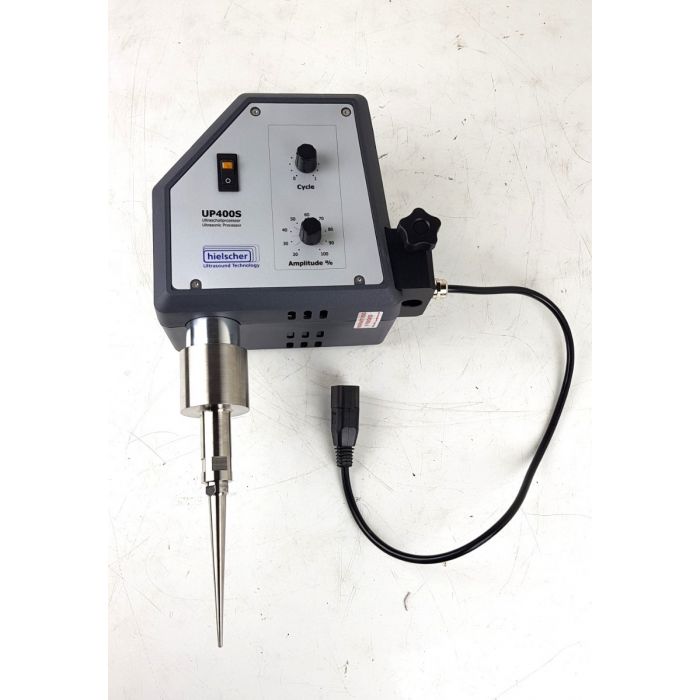

Hielscher - Model UP400S - Ultrasonic Processor with H3 Probe

Hielscher - Model UP400S - Ultrasonic Processor ' with H3 Probe

Sonotrode H3 Tip

Made of Titanium, Tip Diameter 3mm, length 100mm, M10 x1 M ale thread, for samples 5ml to 200ml
Check: Hielscher Ultrasonics GmbH <info@hielscher.com> for alternative Tips

Carry Case, no stand.

400 Watts ultrasonic power – The UP400S (400W, 24kHz) is a powerful and reliable ultrasonic device for the sonication of larger samples in the lab.
Typical application include: Homogenization, deagglomeration, lysis and cell disintegration, protein extraction and the emulsification of liquids. (Click for larger view!)
Ultrasonic homogenizer UP400S with sonotrode H22.The ultrasonic processor UP400S (400 watts, 24kHz) is our most powerful laboratory device.
With sonotrodes of a diameter range from 3 to 40mm the device is suited for the sonication of sample volumes from 5 to 4000ml. In flow approx. 10 to 50 liters per hour can be sonicated.
For the preparation of samples the UP400S is mainly used for bigger volumes.
It is suited for the development of ultrasonic applications in the laboratory but also in the bench top optimization as well as for the production of small quantities.
For production quantities a PC-control or a remote interface to a central control of the user’s facility is recommended in order to raise the process safety and reproducibility.
The PC-control improves the reproducibilty when following specific sonication protocols.
With special flow cells and flange connections liquids can also be sonicated at elevated temperatures and pressures.

Power: 200V to 240V 50/60 Hz
Serial No: PN 66 NNN

PDF Manual
