Hawksley AC1000 +Z4 Improved Neubauer Haemocytometer

Haemocytometer

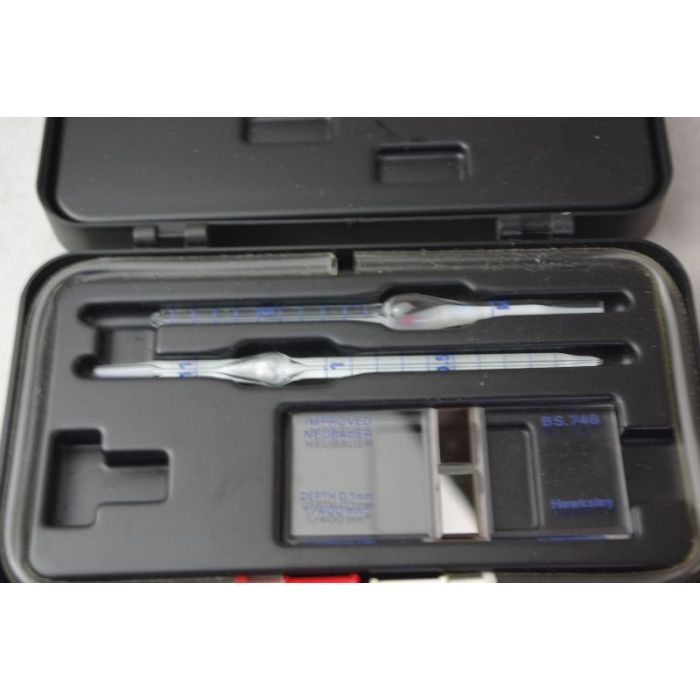

These sets comprise of a cell counting chamber, cover slips, pipettes (red cell and white cell), tubing and pipette holders and instructions on usage and cleaning. Each set is packaged in a sturdy plastic box.

The Cell Counting Chamber is molded from a single piece of thermal and shock-resistant glass. An H-shaped moat forms either one or two counting areas, or plateaus. Each plateau features an etched grid or ruling. The ruled surface is either 0.1mm or 0.2mm below the cover glass, limiting the Volume of 1 Square mm of blood or fluid over a square mm at 0.1cu.mm or 0.2cu.mm respectively.

Contact of the flat, polished cover glass surfaces with the cover glass supports produces an exact volume of fluid over the counting area.

The difference in surface tension characteristics between the metallic surface on the chamber and the polished cover glass assures smooth capillarity for precise loading and more even cell distribution.


AC1000 + Z4 Improved Neubauer

A 2 cell rhodium coated (bright-line) counting chamber set to BS748 with cell depth of 0.1mm and a Neubauer Ruling.




Usage                          Cell Counts
Cell Depth                 0.100mm +/- 1% (1/10mm)
Volume of 1 Square mm           0.1 Microliter
Ruling Pattern                  Neubauer, 1/400 Square mm
Rhodium coated (bright-line)           Yes
