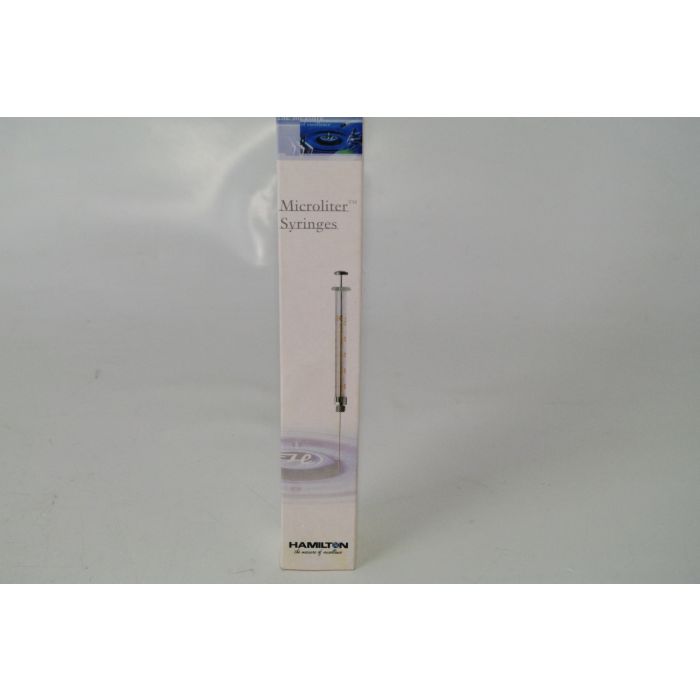

Hamilton Glass Microliter Syringe 0-50ul
The 700 series syringe is the original hand-fitted Hamilton syringe.
Product Specifications
Volume 5 µL
Syringe Type Microliter
Syringe Series 700
Termination Cemented Needle (N)
Needle Cemented Needle
Gauge 26s gauge
Point Style 2
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass
Autoclavable No
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Temperature 50°C / 122°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.014 inches (0.343 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.005 inches (0.13 mm)
Needle Outer Diameter 0.019 inches (0.474 mm)
Std Needle Dead Volume 0.64 µL
| SKU | D734 |
|---|---|
| Availability | In Stock |
| Condition | New |
