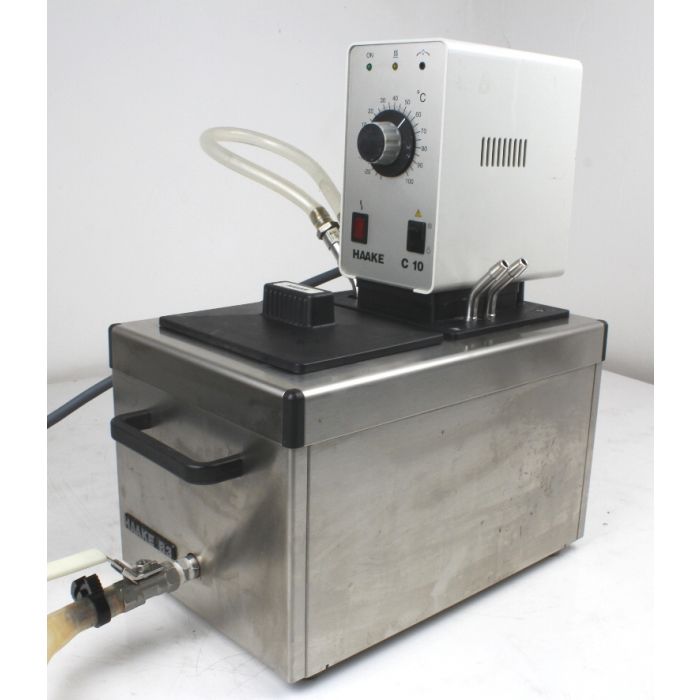

Haake C10 Circulator with B3 WaterBath



The HAAKE C10-B3 unit combines a C10 circulator for working temperatures from -10 to 100°C, with a 3-liter B3 bath.
Temperature accuracy is +/-0.02°K.

The C10 is equipped with an over-temperature alarm setting



C10Technical Specifications:
Operating temperature: –30 - 100 °C
Temperature accuracy: +/– 0.02K
Pump pressure max: 300 mbar
Circulation capacity (open): 17 L/min
Max. flow rate during circulation using 12 mm hoses: 12.5 L/min
Immersion depth from..to: 85-140 mm



B3 Technical Specifications:
Material: Stainless steel
Bath Opening: 130 x 100 mm
Bath Depth: 150 mm
Volume: 3L

Dimensions (WxDxH): 200 x 300 x 375 mm



Serial# 1199900292/054
