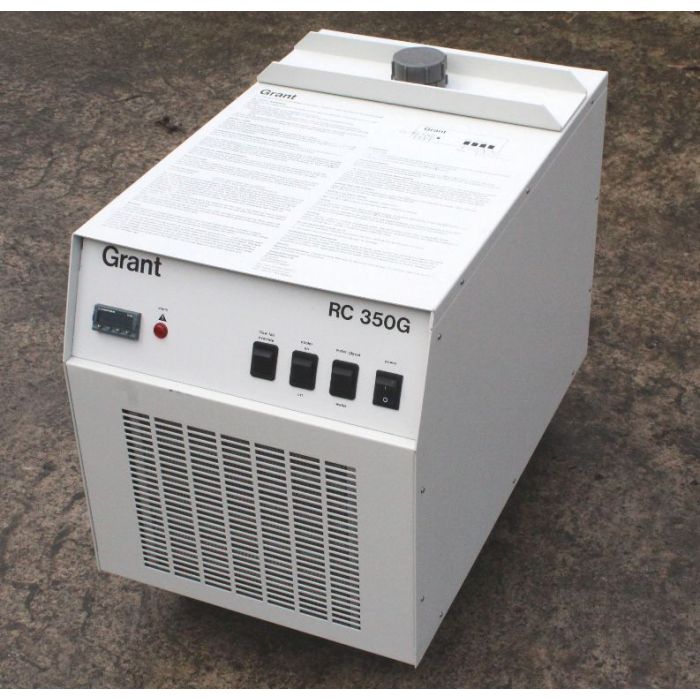

Grant RC350G Recirculating chiller

Grant RC350G Recirculating Chiller



Re-circulating chillers delivering a constant flow of temperature-controlled liquid to provide powerful, regulated cooling at -5ºC for many types of industrial machinery and scientific apparatus. Suitable for circulation through open and closed systems.



Applications:
Electronics - cooling system for etch baths, glass coating for top-up display in aircrafts
Industry - print head cooling for textile industry, calibration system probe
Academia - physics and astronomy lab equipment cooling, sea water cooling for producing ikatite
minerals
Research - seed research, cooling of scientific X-ray analytical units, SEM cooling



Temperature range  -5ºC to 60ºC
Stability ±0.25ºC
Liquid flow rate, maximum L/min 15
Pump head pressure @ 1 L/min bar 1.6
Reservoir capacity L 1.7

Efficient, reliable and cost-effective alternative to cooling with mains water

Digital controller for accurate and reproducible temperature setting. User-selectable high and low temperature alarms

Robust construction, using corrosion resistant materials – long term durability and reliability in demanding applications

Inbuilt safety features protect the user, equipment and application from over temperature, under temperature and flow failure

A useful TUNE facility enables automatic optimisation of the chiller’s closed-loop temperature control parameters to meet specific user requirements

Lockable wheels allow RC units to be moved easily from location to location and ensure that they stay put once in position



PDF Manual



Dimensions h: 510 mm  d: 600 mm  w: 370 mm



Serial # 3X0408001
