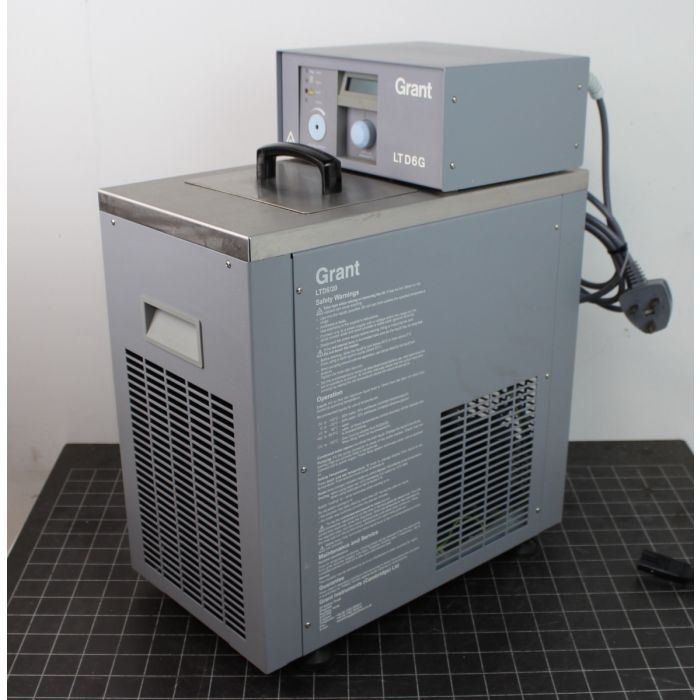

Grant LTD6G Refrigerated Circulator



Compact circulator with stainless reservoir tank and integral refrigeration unit utilising ozone-friendly R134A refrigerant. Immersed parts are manufactured from stainless steel and Ryton fire-retardant plastic, with nickel-plated copper cooling coil.

The control unit has a liquid crystal display, desired temperature being set by pushing in the control knob and turning until the required temperature is displayed. When the knob is released the actual bath temperature is displayed. Low liquid level protection and adjustable high and low temperature protection devices are fitted.



Temp range                   -20 to +100
Display resolution           +/-0.1
Sensitivity                  +/-0.02
Stability                    +/-0.015
Uniformity                   +/-0.02
Cooling capacity W           140
Pump max flow ltr/min        8.5
Pump max head m              1.7
Tank volume liters           6
Top opening lxh mm           120x145
Dimensions lxwxh mm          395x225x505
Weight Kg                    24
Heater load kW               1.4
Electrical requirements      240v 50hz 1.8kW



Serial# 004421001
