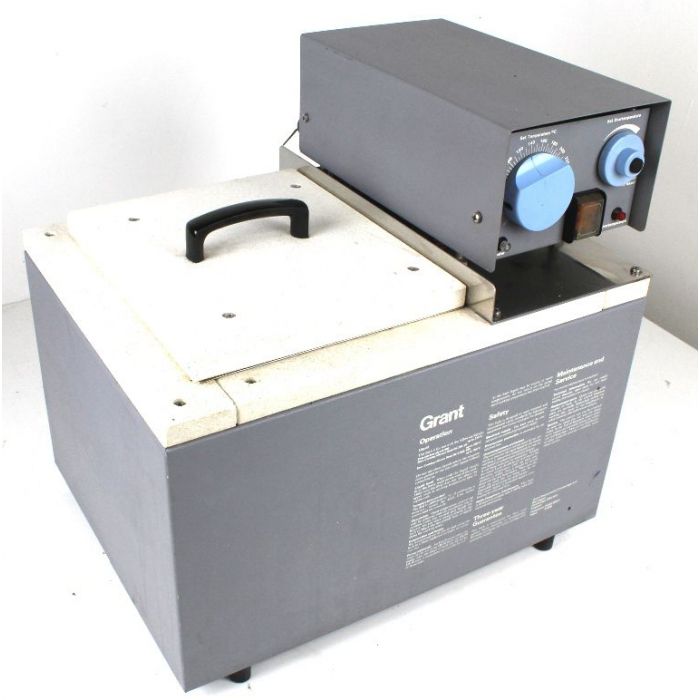

Grant High Temperature Bath HE10 plus UH2 High Temperature Analogue Control

Grant High Temperature Bath HE10 plus UH2 High Temperature Analogue Control

• 50-260°c
• For direct immersion of samples
• Stability ± 0.5°C, uniformity ± 0.25°C - good long-term temperature stability and uniformity are provided by a combination of the electronic control system and the proven Grant circulation system
• Analogue temperature setting- easy to use, conventional knob and dial
• Construction- each bath consists of a heavily insulated stainless steel tank housed in a stove enamelled outer case, with a control unit mounted over one end of the bath, from which heater, stirrer and temperature sensors project down into the bath; a circulation tray enhances the performance, and an insulated flat lid is supplied for maximum user safety

• Design features

- asbestos-free insulating surround to the tank rim provides a cool top surface
- HE bath/circulators are specially designed for use with high temperature liquids, which tend to be viscous at room temperature and have low thermal conductivity; to avoid local overheating and rapid deterioration of the liquid, the stirrer is very powerful and the heater has a very large surface area, to reduce the watts density ratio
- the control unit is raised to allow for a cooling airflow above the tank
- exposed or immersed parts are made from stainless steel, nickel-plated copper or appropriate plastics, to minimise the risks of corrosion
- HE bath/circulators are robust and reliable, for longterm durability
- installation and operation are straightforward - no training is required
- concise working instructions are printed on the outer case for permanent reference
- quiet operation maintains a peaceful working environment

• Safety- adjustable overtemperature cut-out

• Tank Capacity 10 Litres

Dims Ext 31cm (D) x 41cm (W) x 42cm (H)
Dims Int 21cm (D) x 30cm (W) x 19cm (H)

Serial# B0925001

PDF Manual
