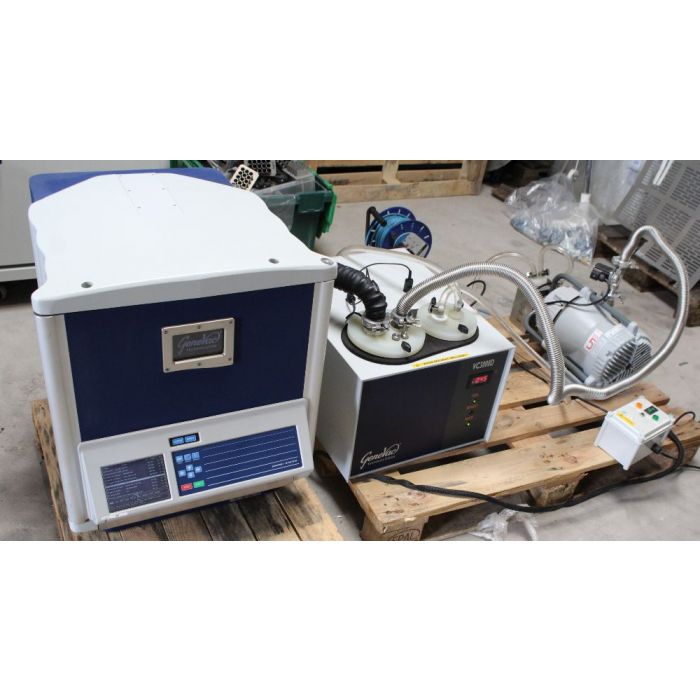

Genevac HT8 Series 11 Evaporation system

Genevac HT8 Series 11 Evaporation system



HT8 Evaporator
VC3000D Condensor
Edwards XDS5 Dry Scroll Vacuum Pump
All cables/connectors/vacuum fittings and original manuals



Genevac HT Series II systems are the ideal solution for evaporation bottlenecks in high throughput and production laboratories - the systems high performance and high sample capacities make them the ideal workhorses. The unique design of the multi layer rotor ensures efficient use of valuable laboratory benchspace as well as high performance and high throughput evaporation. Evaporation times do not vary across the HT range, the same overall evaporation time is required to dry a full load of samples in an HT-4X as is required in an HT-8 or HT-12.



Peace of mind comes as standard with patented temperature control and bumping prevention built in, systems can be customised with high performance options to ensure that users achieve the fastest safe evaporation possible. To further optimise productivity, Genevac offer a wide range of sample holders which can be integrated with other laboratory automation systems.



The control of chamber, bucket and sample temperature, vacuum pumping rate, ultimate chamber presure, rotor speed and run time are maintained by an embedded PC



The control software enables the user to specify and store a library of up to 100 different evaporation profiles in an uncomplicated manner.



Run profiles can also be linked to provide multi stage runs. Up to 100 different profile steps can be linked and iterative loops can also be programmed.



High speed evaporation
High throughput evaporation
Integration options for automated laboratories
Fast lyophilisation capability



Serial#'s
HT8 "6321"
VC3000D "1116"
XDS5 "086297137"
