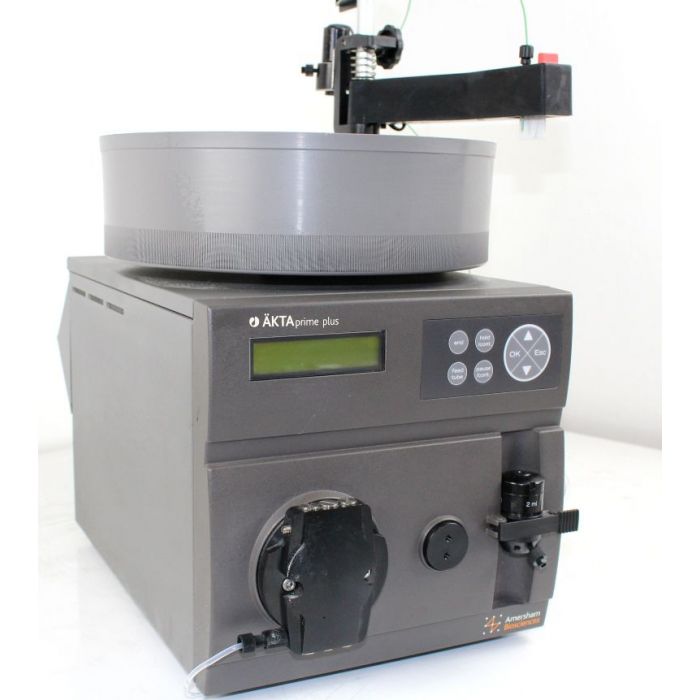

GE Amersham Biosciences ÄKTAprime plus

GE Amersham Biosciences ÄKTAprime plus



ÄKTAprime plus is a lab-scale chromatography system that performs simple purifications of tagged and untagged proteins as well as antibodies.



Optimal results with HiTrap, HiPrep and HiLoad prepacked columns.
Specific and quick methods for tagged protein purification.
Simple-to-use wirh preprogrammed templates covering all common techniques.



ÄKTAprime Plus is Compact and Flexible
ÄKTAprime plus is a compact one-step lab-scale protein purification system. For reliability and convenience, we recommend HiTrap, HiPrep, or HiLoad columns that simply snap on to the side of the unit. The system has preprogrammed methods for typical applications such as purification of affinity tagged proteins, MAbs and sample clean-up. ÄKTAprime plus is a flexible system that can be used for more general purification tasks such as buffer exchange, gel filtration, ion exchange, HIC, and affinity chromatography.



ÄKTAprime plus includes a system pump, fraction collector, and monitors for UV, conductivity, and pH (optional). Valves for buffer selection, sample injection, gradient formation, and flow diversion are also integrated into the system.

Application Simple purification of tagged and untagged proteins

Flow Rate 0.1 ml/min-50 ml/min
Operating Pressure Max. 1 MPa (145 psi)
Single Wavelength Detection Mercury lamp and 254 and 280 nm filters included
Flow Cell Path Length 2 mm
Relative Humidity 20%-95% (non condensing)
pH Stability Long Term 2-12
Viscosity max 10 cP (<10 ml/min), max 5 cP (>10 ml/min)
Width 400 mm Height 530 mm Depth 450 mm
Weight 13 kg
Voltage 100-120/220-240 VAC



PDF Instruction Manual



This item runs through it's boot up and self test programme to the templates option without showing any errors. Price does not include Software (Primeview  5.31 software is available from GE Life Sciences)
