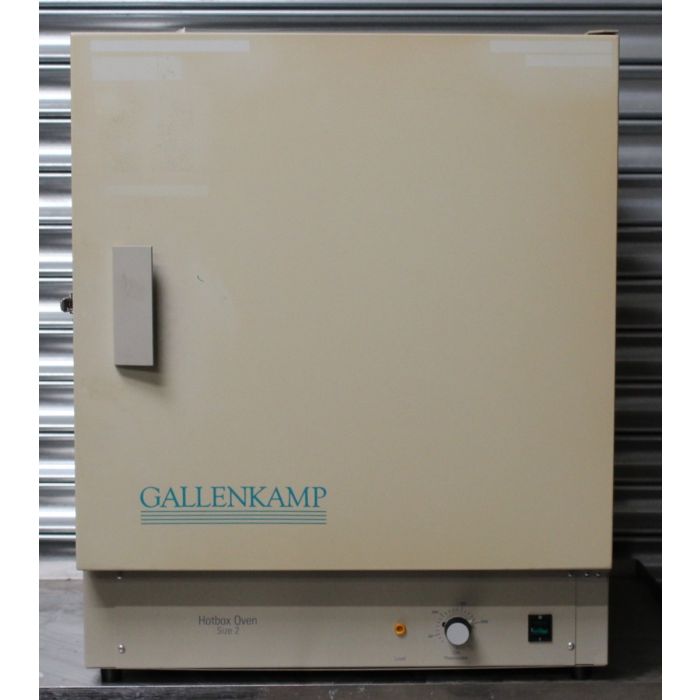

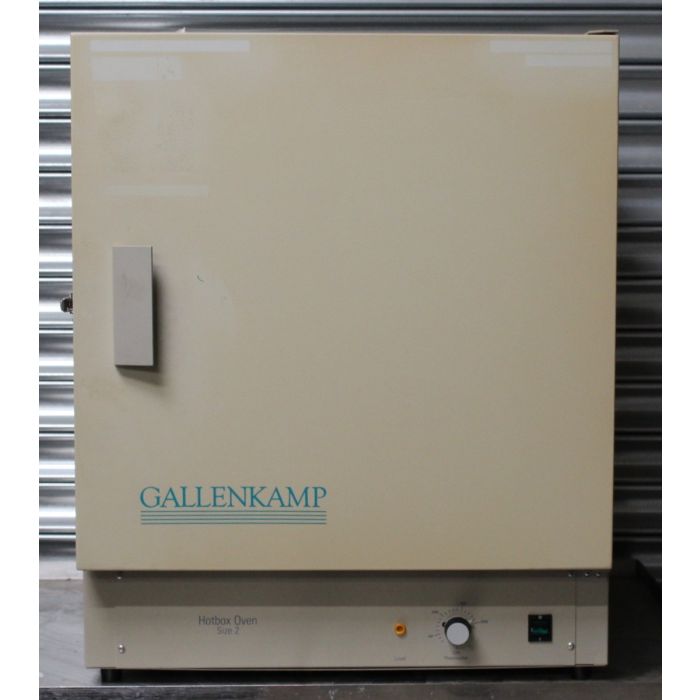

Gallenkamp Hot Box Oven - Size 2

Gallenkamp Hot Box Bench Top Laboratory Oven – 200°C
Model: OVB 305

 GALLENKAMP Hot Box Oven - Size 2

Model OHG097.XX1.5

105 Litre capacity

This Gallenkamp heating and drying oven is used for general production and research and is found in various branches of industry including: Electronics, Automobile Production, Plastics, Metal, Chemical and Pharmaceutical industries.

Production characteristics:

- Economical and environmentally friendly, thanks to its enhanced thermal insulation offering optimum thermal separation of the inner and outer casing.
- High degree's of safety:
- Service and maintenance friendly
- Heating and drying oven compling with EMC guidelines

Design

The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from stainless steel coated with aluminium (CLAD)

Fitted with fixed 6 shelf runners and 3 removable chrome plated wire grid shelves. The top vent is fitted with a clip to hold a mercury-in-glass thermometer.

Heating

800W Incoloy sheathed element; positioned on the chamber floor for uniform natural convection.

Electrical details

1ph 220/240 Volt
5 Amp
800 Watt

Key Features
Robust Reliable Construction
Temperature Range: 40°C to 200°C
Performance Data Temp.
Fluctuation; ± 1.5 C
Number of shelves - 3
Number of shelf positions - 6
Interval between shelves – 65mm
Max load per shelf – 25kg
Max load per chamber - 50kg

Internal dimensions - hxwxd - 480mm x 480mm x 465mm
External dimensions - hxwxd - 590mm x 580mm x 720mm

Serial# SG93/12/362
