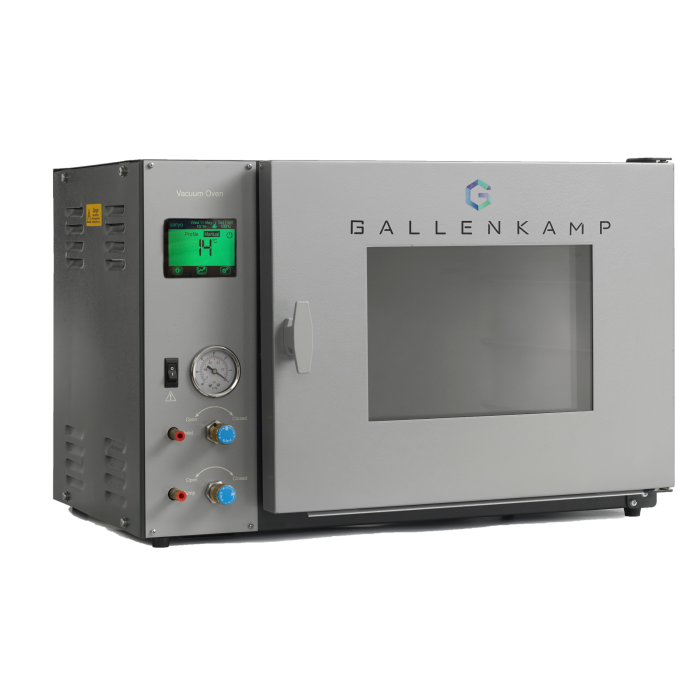

GALLENKAMP DIGITAL TOUCH SCREEN VACUUM OVEN

GALLENKAMP DIGITAL VACUUM OVEN

Made to order in UK, Lead time approx 8 weeks

The Gallenkamp vacuum oven features a spacious rectangular chamber with toughened glass viewing window and shatter resistant safety screen.
Featuring a new touchscreen control system which offers accurate and easy to operate features designed for Laboratory Vacuum ovens.

The exterior is constructed from steel and is finished in an easy to clean powder coated paint. The interior of the oven is made from aluminium. The oven is fitted with fixed shelf runners and removable shelves.

FEATURES
• Compact Size, 31 litre capacity
• History display- onscreen historical trending (48 hours)
• 8 stage profile control
• Countdown timer
• 24/7 real time clock operation
• Manual or automatic overheat reset
• Temperature setting with over temperature alarm indication
• Easy to read Vacuum Gauge.
• Tough steel construction with toughened glass window and polycarbonate safety screen
• Autotune feature
• Profile mode
• Export data easily to USB

CONTROLS
The control system comprises of a bespoke touch screen user interface permitting advanced features to be turned on or off to suit bespoke heating applications and tailored to customer preference.
The History display allows the user to view the history of the chamber the red trend is the set point the chamber is working to the green trend is the critical temperature the chamber has been. The Autotune feature involves the chamber of the oven gradually increasing in temperature and then teaching itself the thermal errors.
The Profile mode allows for multi profile control with cyclic features. You can enter a maximum of 8 unique profiles with a unique name and number of cycles.

Weight 43kg
Dimensions 420 x 630 x 425mm
Capacity, Litre 31
Temperature Range 30 to 200C at ambient temperatures less than 25°C
Power Rating, Maximum, W 1000 nominally @240V
Shelf, (W x D), mm 366 x 290
Number of Shelves Supplied 2
Number of Shelf Positions 3
Interval Between Positions, mm 75
Internal Dimensions (H x W x D), mm 260 x 375 x 310
Tubing Connections 10-12mm Bore
Leakage Rate (at 0.01 mbar)
10 mbar/24 hr
i.e. 4×10-6 mbar/l/s
