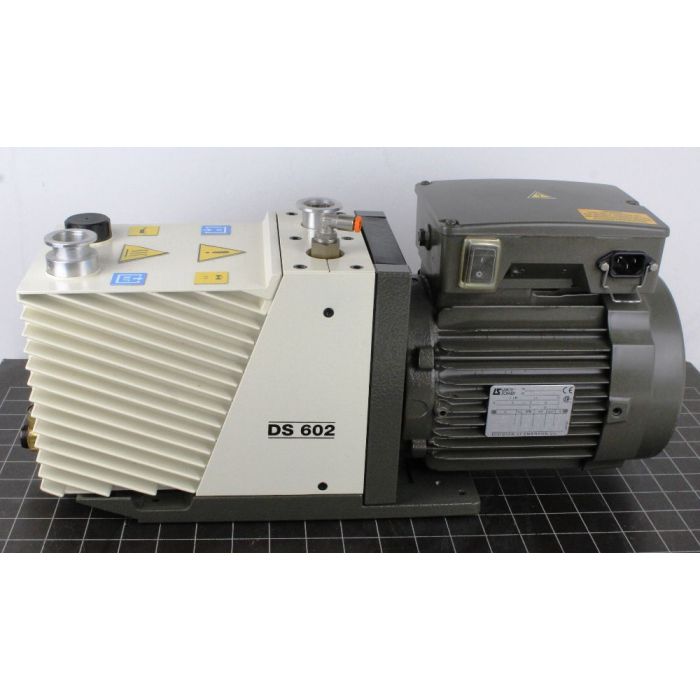

Galileo (Varian) DS602 Rotary Vane Vacuum Pump

Dual Stage Rotary Vane Pump

Dual Stage Pump The two stage design allows low 10-3 mbar operation, low operating temperature, minimal backstreaming at low pressure, good pumping efficiency and gas ballast in the high 10-3 mbar region

Gas Ballast Valve The opening of this valve injects air into the second stage of the pump. This action increases the temperature of the module which facilitates the outgasing and clean up of water vapor or other condensibles from the pump fluid

Free air displacement 50 Hz: 504 l/min 3 (30.2 m /h)
Pumping speed 50 Hz: 25 m /h
Ultimate partial pressure 10-4 mbar
Ultimate total pressure 2 x 10-3 mbar
Ultimate total pressure with gas ballast 1 x 10-2
Water vapor tolerance 30 mbar
Water vapor capacity 550 g/h
Oil capacity min/max 0.5/1 l
Motor rating 1ph 50 Hz: 0.75 kW
Nominal rotation speed  50 Hz: 1500 rpm
Weight kg (lbs) 35 (77)
Inlet flange 25KF DN
Exhaust flange 25KF DN

Dims 54cm (D) x 16cm (W) x 24cm (H)

Serial# 238954
