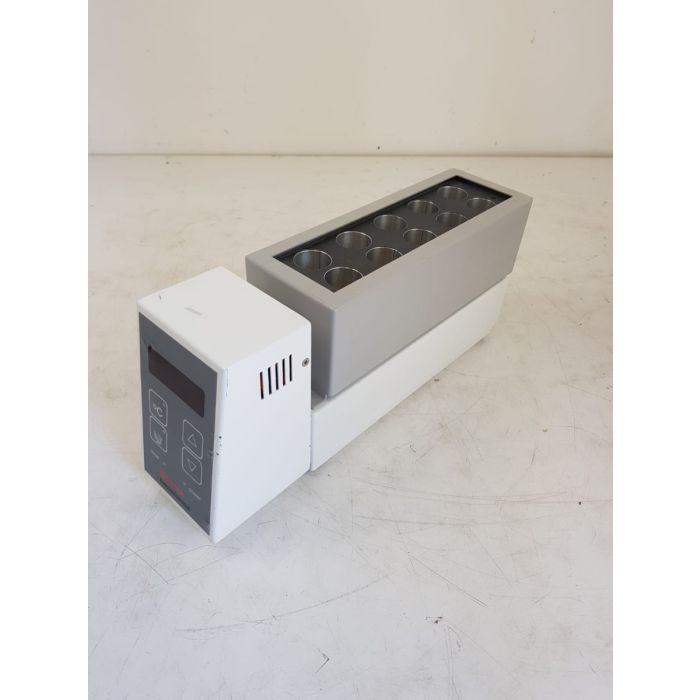

Electrothermal STEM RS1000 Heater/Stirrer Reaction Stations

Electrothermal STEM RS1000 Heater/Stirrer Reaction Stations

Electrothermal’s heating and stirring Reaction Stations can be used for a wide range of applications from simple synthesis to process optimisation. High performance magnetic stirrers beneath each sample position ensure maximum coupling between the stirrer bar in the sample and the powerful motor.

The unit has a powerful stir speed from 400 to 2000rpm, and permits both manual, and external control via the RS232/RS485 interface ports. It has a compact footprint for easy integration onto a robotic platform.

Adaptor sleeves can be used to accommodate non-standard vessel sizes. This instrument includes a set of what we believe are PS80081 Adaptor sleeve 25mm to 24mm tubes. As per the close up image

The well-insulated reaction unit keeps the casework “cool-to-touch”,gives quick heat-up times, excellent temperature uniformity across the block, and a thermal cut-out eliminates runaway conditions. The combination of precise electronic control and rugged design ensures operator safety, while a PTFE coating protects the block from chemical spills.

10-position reaction station
24mm/25mm diameter vessels
Can accommodate 16mm and other diameter vessels with appropriate adaptor sleeves
Sample sizes from 10ml to 30ml
Controlled temperature range from ambient to 150ºC
Manual and external control via the RS232/RS458 interface port
Powerful stir speed from 400 to 2000rpm
Compact footprint for easy integration onto a robotic platform

Sample volume 10 - 30ml
Stir speed range 400 - 2000rpm
Soft start (to full ramp) 0 - 10mins
(Adjustable)
Temperature range (ambient) Ambient to 150ºC
Ambient to 300ºC for RS1000H
Temperature stability ±0.5ºC
Time to max/min temp 15mins
Interface port RS232/RS485 & manual
Dimensions (w x h x d), mm 80 x 150 x 305

Serial# 10010674

PDF Manual
