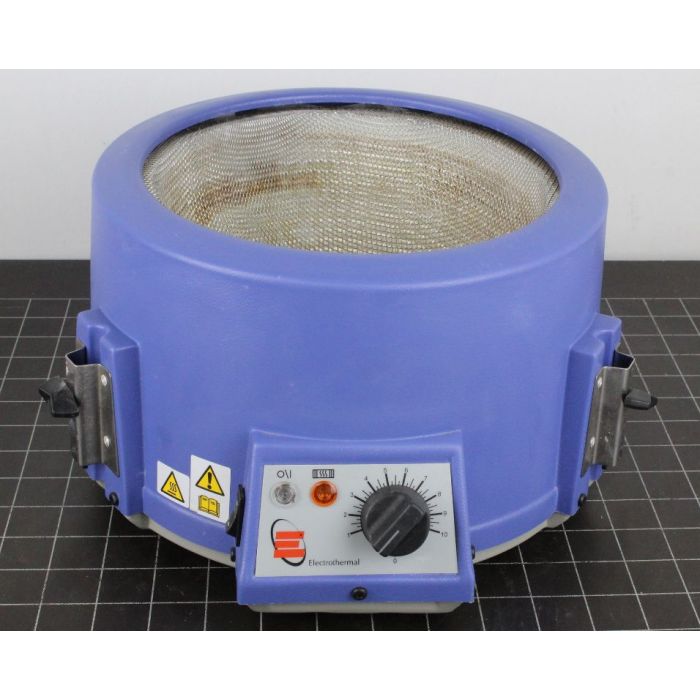

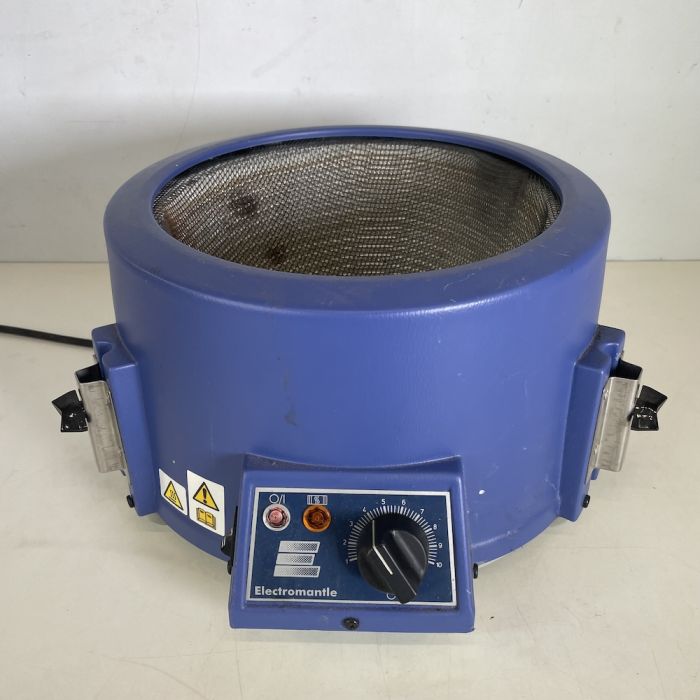

Electrothermal EM5000/CE Heating Mantle

5000 mL Capacity, 230 VAC

Features a durable, chemical resistant polypropylene housing that is "safe to the touch".

Flexible heating element ensures minimum risk of flask breakage.

These controlled and grounded electromantles feature a built-in power regulator and safety earth (ground) screen. Unique ventilation slots keep the exterior "safe to the touch" even while in use.

The replaceable coiled heating element is suspended within a thermal insulating cartridge to provide maximum heat transfer and support. Ceramic fiber insulation keeps the chemical-resistant polypropylene case cool. Built-in power controller has dial markings from 1 to 10 for repeatability. Mantles feature indicator lights: an amber-colored "power on" light and a clear-colored "heater on" light. All mantles are double fused and include a single support rod clamp that accepts a 1/2" rod. The stainless steel grounding screen provides added protection against shock in the event of spillage or flask breakage.

Max Flask Size (mL) 5000
Material Polypropylene
Max temperature (° F) 842
Max temperature (° C) 450
Distribution Of Watts Upper Half (watts) 500
Distribution Of Watts Lower Half (watts) 300
Power (VAC) 230
Power (Hz) 50/60
Power (watts) 800
Height 20cm
Width 35cm
Depth 40cm

PDF Manual

Serial# M384970/02
