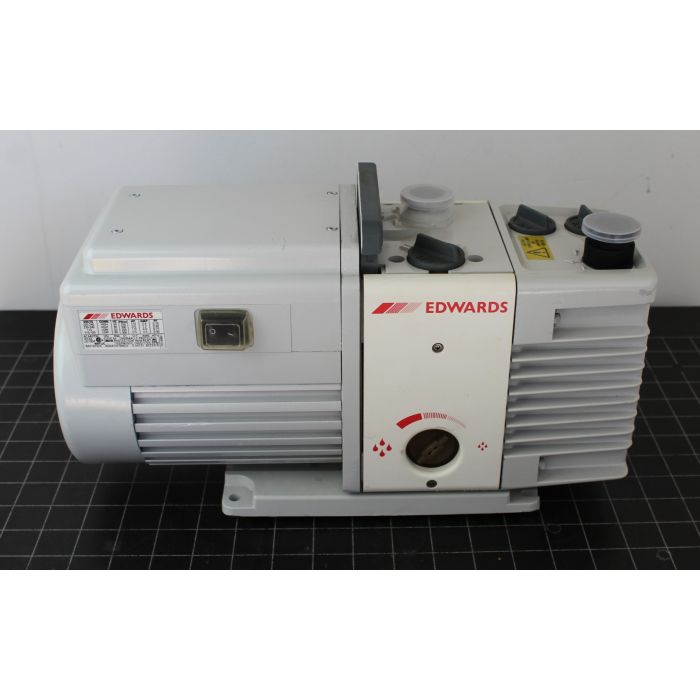

Edwards RV5 Oil Sealed Rotary Vane Vacuum Pump

Edwards RV5 Oil Sealed Rotary Vane Vacuum Pump

Edwards RV5 FF Oil Sealed Rotary Vane Vacuum Pump

The RV series of small oil sealed rotary vane pumps deliver excellent ultimate vacuum pressure, high pumping speeds and superior vapour handling capabilities with quiet operation. With 400,000 units produced, these pumps offer proven performance that sets the industry standard for R&D and scientific pumping applications.
Noise levels of 48 dBA 50Hz have been achieved by extensive work on the pump design, drive train and motor.
The pumps have the unique ability to deliver excellent ultimate vacuum in both high vacuum and high throughput modes with or without gas ballast. This gives the user an unrivalled opportunity to select the optimum pumping performance without compromising the application.
In high vacuum mode, the RV pump is ideal for analytical instruments, electron microscopes, physics research, backing turbo pumps and leak detection applications. Configure the same pump in the high throughput mode, and it becomes suitable for distillation, laboratory furnaces, backing vapor pumps, solvent concentration, freeze drying and other drying applications.
High reliability – generous lubrication of moving parts.
Safe process and systems – fast acting inlet valve for best in class anti-suck back protection.
Configured to meet your vacuum needs – mode selector and three position gas ballast
No unplanned downtime – designed for easy maintenance.
Better work environment – quiet running and intrusive frequencies minimised.
Three position gas ballast allows either 60 g/hr or a class leading 220 g/hr (290 g/hr on RV12) of water vapour to be handled.
Universal motor to cover the widest possible voltage and frequency range from a single variant.
Smooth controlled inlet valve opening by oil pressure to eliminate pressure surges.
Rapid closing inlet valve within 0.4 seconds of pump stopping.

Displacement
50Hz 5.8 m3h-1 / 3.4 ft3min-1
60Hz 7.0 m3h-1 / 4.1 ft3min-1
Speed (Pneurop 6602)
50Hz 5.1 m3h-1 / 3.0 ft3min-1
60Hz 6.2 m3h-1 / 3.7 ft3min-1
Ultimate pressure 2.0 x 10-3 mbar / 1.5 x 10-3 Torr
Ultimate pressure GB I 3.0 x 10-2 mbar / 2.3 x 10-2 Torr
Ultimate pressure GB II 1.0 x 10-1 mbar / 7.5 x 10-2 Torr
Ultimate Pressure with Fomblin® 2.0 x 10-2 mbar / 1.5 x 10-2 Torr
Max inlet pressure for water vapour 50 mbar / 38 Torr
Max water vapour pumping rate – GB I 60 gh-1
Max water vapour pumping rate – GB II 220 gh-1
Max allowed outlet pressure 0.2 bar gauge / 2.8 psig
Max allowed inlet and gas ballast pressure 0.5 bar gauge / 7 psig
Motor power 50/60Hz 450 / 550W
Power connector 1-ph IEC EN60320 C13
Nominal rotation speed 50/60Hz 1500 / 1800rpm
Weight (without oil) 25 kg / 55 lb
Oil capacity min/max 0.42/0.7 litres
Recommended oil Ultragrade 19
Inlet flange NW25
Exhaust flange NW25
Noise level 48 dB(A) @ 50 Hz
Operating temperature range 12 – 40 °C

PDF Manual
Serial# 96-2051984
