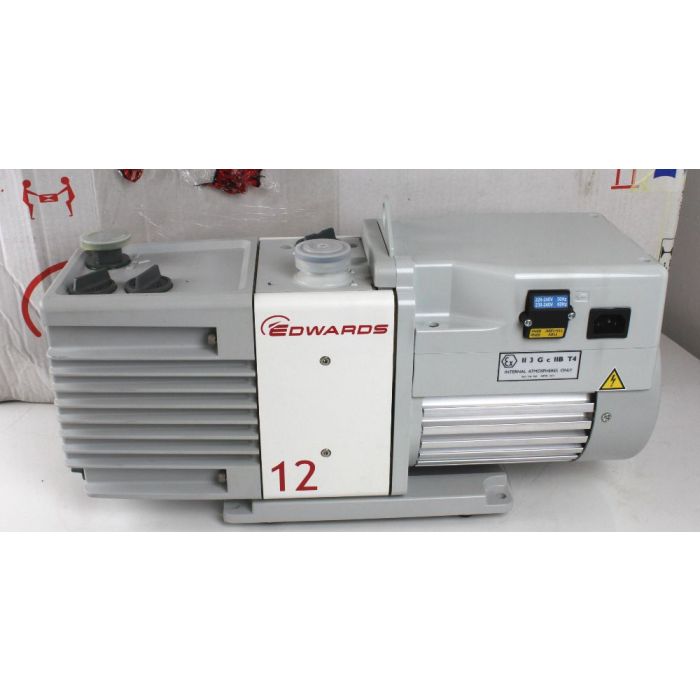

Edwards RV12 Rotary Vane Pump (New and unused in original packaging)
Model A65501903
The Edwards RV series of oil sealed rotary vane pumps are unique in their capability to offer both high vacuum and high throughput performance, which combined with ultra-low noise levels and excellent gas ballast facility, makes them ideal for a wide range of applications and environments
Edwards RV pumps have become the industry standard for scientific primary pumping applications. RV pumps are uniquely capable of delivering high or low throughputs with high ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including GCMS and other small bench top type applications.
All pumps are approved to UL and CSA standards by an external test house. Edwards has a global network, providing world-wide support for product applications and service.
RV pumps are significantly quieter – noise levels of 48 dBA 50Hz are typically half the noise of a conventional pump and have been achieved by extensive work on the drive train and motor.
The pumps have the unique ability to deliver excellent ultimate vacuum in both high vacuum and high throughput modes with or without gas ballast. This gives the user an unrivalled opportunity to select the optimum pumping performance without compromising the application.
In its high vacuum mode, the RV pump is ideal for analytical instruments, electron microscopes, physics research, backing turbo pumps, TV tube pumping and leak detection applications. Configure the same pump in the high throughput mode, and it becomes suitable for mass spectrometer inlet systems, distillation, laboratory furnaces, backing vapor pumps, solvent concentration, freeze drying and other drying applications.
The simple to use mode selector and accessible, three-position gas ballast control allow the pump to be reconfigured at any time, even when the pump is running.
The pumps have the unique ability to deliver excellent ultimate vacuum in both high vacuum and high throughput modes with or without gas ballast. This gives the user an unrivalled opportunity to select the optimum pumping performance without compromising the application.
In its high vacuum mode, the RV pump is ideal for analytical instruments, electron microscopes, physics research, backing turbo pumps, TV tube pumping and leak detection applications. Configure the same pump in the high throughput mode, and it becomes suitable for mass spectrometer inlet systems, distillation, laboratory furnaces, backing vapor pumps, solvent concentration, freeze drying and other drying applications.
The simple to use mode selector and accessible, three-position gas ballast control allow the pump to be reconfigured at any time, even when the pump is running.
- 48 dB(A) and intrusive frequencies minimised.
- Dual mode. Suitable for high throughput and high vacuum applications.
- Easy-to-use gas ballast.
- Fast acting inlet valve for system protection.
- High torque, dual voltage/dual frequency motor, electronic start relay.
- Efficient high pressure lubrication.
- Oil-tight with printed gaskets, effective shaft seals.
- Clamped-in sight glass.
- Oil box well contains filling spills.
- Hi-tech polymer blades, large diameter, easy-clean oil passages.
- Consistent, built-in quality, cast bar construction.
Applications:
Analytical instruments
Centrifuges, ultra-high speed
Coating
Degassing/curing - oil, epoxy resin
Distillation/extraction/filtration
Freeze drying
Furnaces
Gas bottle filling/emptying
Gel drying
Glove boxes, ovens
Laboratory bench top vacuum
Leak detectors, Helium
Load locks and transfer chambers
Refrigeration manufacture
Research and development
Rotary, centirfugal evaporators
Scanning electron microscopes - SEM
SEM/FIB (ion beam repair)
Solvent recovery
Surface science instruments
Turbomolecular backing pumps
Centrifuges, ultra-high speed
Coating
Degassing/curing - oil, epoxy resin
Distillation/extraction/filtration
Freeze drying
Furnaces
Gas bottle filling/emptying
Gel drying
Glove boxes, ovens
Laboratory bench top vacuum
Leak detectors, Helium
Load locks and transfer chambers
Refrigeration manufacture
Research and development
Rotary, centirfugal evaporators
Scanning electron microscopes - SEM
SEM/FIB (ion beam repair)
Solvent recovery
Surface science instruments
Turbomolecular backing pumps
Serial# 139500382
Dims 52cm (D) x 18cm (W) x 47cm (H)
https://shop.edwardsvacuum.com/products/a65501903/view.aspx
| SKU | H326 |
|---|---|
| Availability | Out of Stock |
| Condition | New |
