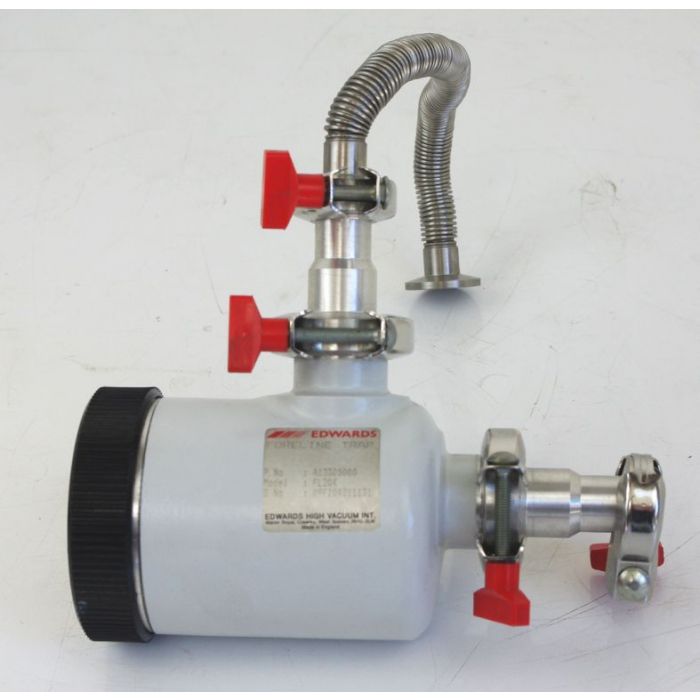

Edwards FL20K Foreline Trap and fittings

Edwards FL20K Foreline Trap and fittings

A13305000

The FL20K foreline trap has been developed for use in clean pumping systems, to prevent the back-migration of rotary pump oil mist into the system.

The FL20K is most useful with two-stage rotary pumps, operating below 1 mbar. To maximize sorbent life, install the FL20K near the vacuum system. In common with other types of sorbent, activated alumina absorbs water. This does not affect the oil vapor trapping properties but may tend to prolong the roughing time on successive pump downs. To minimize vapor absorption, we recommend you fit a valved by-pass line.

The trap body is made of aluminum and is fitted with a removable basket containing the sorbent

• Exceptional trapping properties for oil mist (99.7%)
• A very long life before it is saturated
• Can be rejuvenated by baking the basket containing the sorbent for 2 hours at 250 °C - 300 °C.

PDF Maual

Serial# 09FZ04211131
