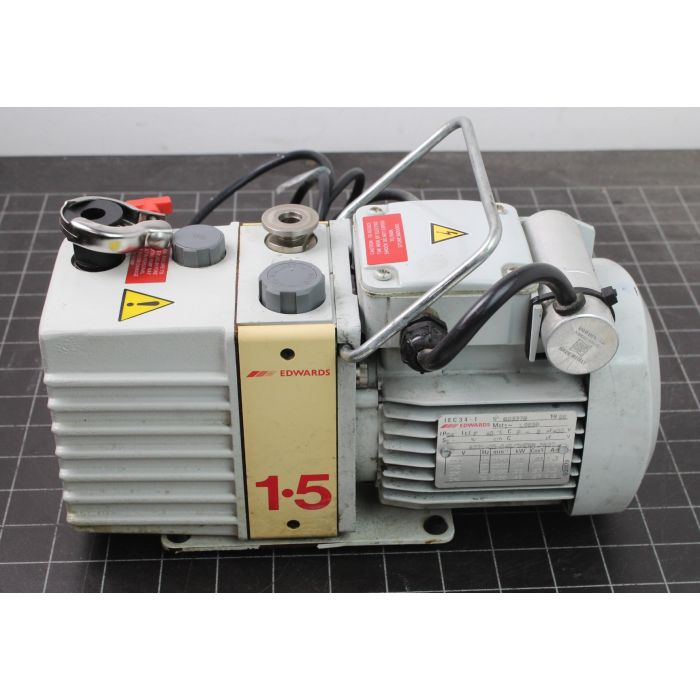

Edwards 1.5 E2M Vacuum Pump



Description



The Edwards 1.5 E2M1.5 dual stage rotary vane mechanical vacuum pump offers an excellent ultimate pumping speed. The Edwards 1.5 E2M1.5 has superior vapor handling capabilities, while operating quietly. They are very reliable and have accessories to match any application.



Applications Include use with Refrigeration dehydration, Brake line evacuation, Epoxy degassing, Sterilization, Mass spectrometry, Vacuum ovens, Lasers, Backing combinations, Thin film coating, Vacuum distillation, Freeze drying, Space research and other vacuum processes.



The Edwards 1.5 E2M1.5 vacuum pumps have a pumping speed displacement at 60Hz of 1.2 CFM and an ultimate pressure of 1.1 X 10 -3 Torr.



Unique Design
Good Pumping Speed
Numerous Applications
Easy Servicing
Long Life



Peak Pumping Speed 1.2 cfm at 60 Hz
Ultimate Pressure 1.1x10-3 Torr (1.6x10-3 mbar)
Noise Leve 54 dB(A) Connection Inlet Exhause NW10
Max water vapor inlet pressure 10 torr (15 mbar)
Max water vapor capacity 8 grams / hr
Physical Data 22 lbs 12.6 L x 4.6 W x 7.4 H in
Electrical Supply 1-phase 110-240V 3 phase 200-460V
Operating temperature range 12-40 C
Oil Capacity 0.28 L Oil Type Ultragrade 15



Serial#  96222065277

Dims 35cm (D) x 12cm (W) x 21cm (H)

This is an older model showing some signs of it's past use but still working well
