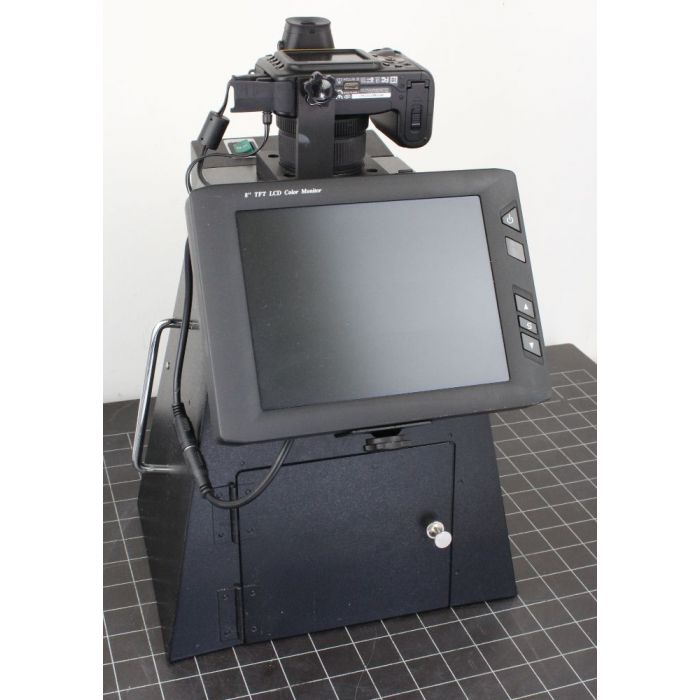

Cleaver Scientific microDOC Compact Gel Documentation System DI-HD-220

The MicroDOC is the researcher’s choice for a simple ultra-compact gel documentation system that meets constraints in both budget and space within the laboratory. A large 8″  TFT screen enables images, including agarose and fluorescent gels, colorimetric gels, autoradiography film and blotting membrane, to be captured in colour, clearly and easily.

    Digital camera
    Image visualised within a large 8" TFT colour monitor
    Light weight compact hood with easy access door and built-in inner lights
    Safety switches disconnect the UV source when the easy access door is opened
    Computer-free operation

Camera:
Kodac Easyshare P880
f/2.8-f/4.1 24 – 140 mm (35 mm equivalent) wide-angle to telephoto zoom lens
1/1.8-inch (7.18 x 5.32 mm) 8.3 MP 4:3 CCD sensor
640x480, 320x240 30fps QuickTime Movie video capture.
Auto, Scene, Programmed Mode, Aperture priority, Shutter priority, Manual exposure - allows (B)ulb, Custom modes (stores 3 profiles)
Manual zoom ring and optional use of manual focus ring (fly-by-wire). Autofocus uses hybrid phase detection system (sensors above the lens) for quick focus assist followed by contrast detection system (TTL) for fine focus. Phase detection system should be switched off in the menu when accessory lenses are mounted.

2.5-inch 480x240 (115k) pixel LCD panel

Screen:
Type  8" TFT
Resolution  600x800 Pixels
Brightness  350 cd/mm2
Constant Ratio  300 : 1
Display Mode  NTSC / PAL / SECAM mode, auto switching

Power: 220V 50/60Hz
DOM: 2015
Serial: 7807010
