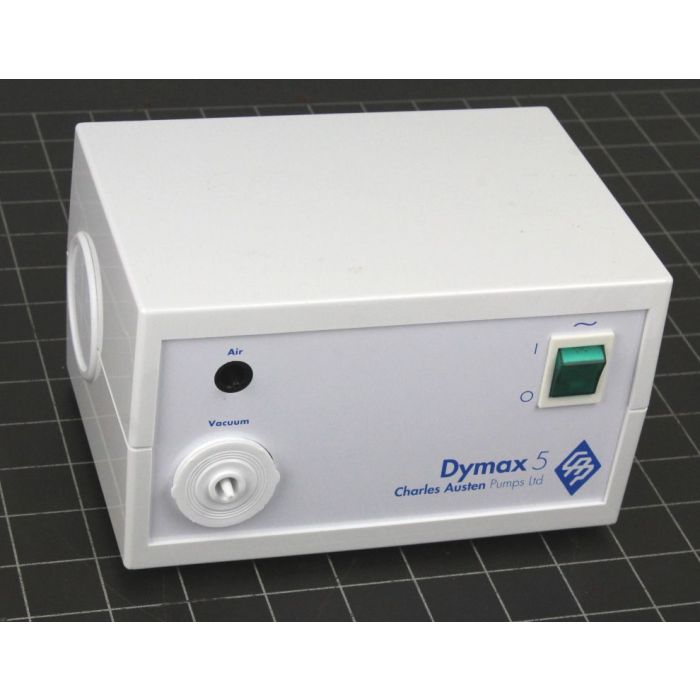

Charles Austen Dymax 5 Cased Diaphragm Pump

The Dymax 5 provides a clean oil free vacuum or pressure source. Rated for continuous operation, the Dymax 5 is whisper quiet and ruggedly reliable. The diaphragm pump is housed within a clean, tough and compact polycarbonate case which conforms to IEC 1010 for safety.

Specifications :
Maximum Flow: 5.0 litres per minute
Maximum Pressure: 0.8 bar / 12.0 psi
Maximum Vacuum: 500 mbar (abs)
Voltage  230V AC (50hz)
Weight: 1.9 kilograms
Dimensions (LxWxH): 210 x 125 x 151 mm

Applications:
Aspiration in microbiology experiments
Gentle fume extraction
Air sampling

Serial# 09140254
