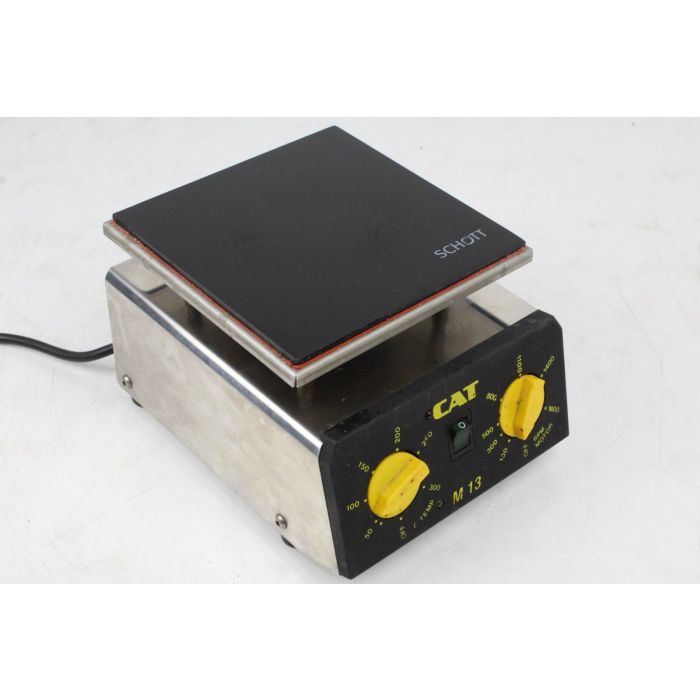

CAT M13 Stirring Hotplate

Hotplate Stirrers for the daily Lab Routine.

This group of compact, robust stirrers has been developed for general stirring tasks in today’s busy laboratory. Analogue controlled hotplates, brushless motors with opto-electronic speed control, embedded heater coils, CAT splash-proof construction with stainless steel covers give a long term trouble-free life.

Safety Functions for Connection of Contact Thermometers.

M13 model provide a socket for contact thermometers (CTC) and a safety monitoring circuit which controls the external probe. An error message during operation (e.g. broken CTC) shuts the hotplate down.

Note regarding the various hotplates

Type  M13

This hotplate stirrer is equipped with a Schott branded CERAN hotplate with 600 W heating power. CERAN glass ceramic is mostly chemically resistant. The heating surface stays constantly straight and is easy to clean.

Underneath the CERAN plate there is a closed heating coil which is embedded in a stainless steel tubing filled with quartz sand. The heat is mainly transferred by heat radiation.

Serial# 170127
