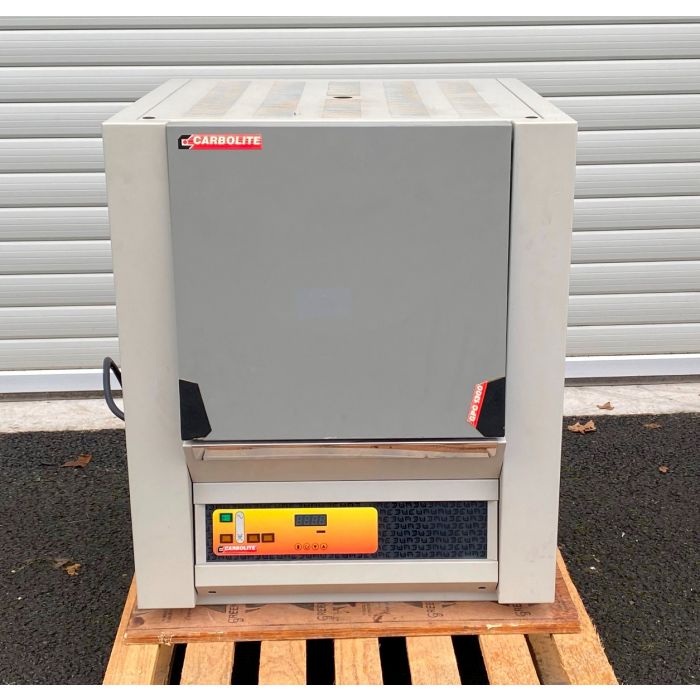

Carbolite GPC 1300 Chamber Furnace

Carbolite GPC 1300 Chamber Furnace

Medium Laboratory Chamber Furnace -- GPC 13/36

Maximum operating temperature of 1300°C
Rugged construction for heavy-duty heat treating requirements.
High power free radiating side heating elements provide fast heat-up and enhanced chamber uniformity.
Vertical lift door design keeps hot door insulation away from the operator.
Low thermal mass insulation improves energy efficiency and fast heat-up rates.
Hard ceramic hearth provides excellent resistance to wear and spillage.
Long-life heavy gauge coil heating elements.
Chamber vent provides for process exhaust.
Dense refractory around chamber entrance resists abrasion and wear.
Positive break door safety switch isolates power to the heating elements when the door is opened.
Low outer case temperature provided through double-shell construction.
Small case size conserves bench space.

Temperature Range 0.0 to 1300 C (32 to 2372 F)

CHAMBER DIMENSIONS
Height 250 mm (9.84 inch)
Width / Tube O.D. 450 mm (17.72 inch)
Depth 320 mm (12.6 inch)

Capacity 36 litres (38.04 quarts)

External Dimensions
Height 82cm
Width 69cm
Depth 77cm

Serial# 20-400965

3-Phase electrical supply - 440 Volt
