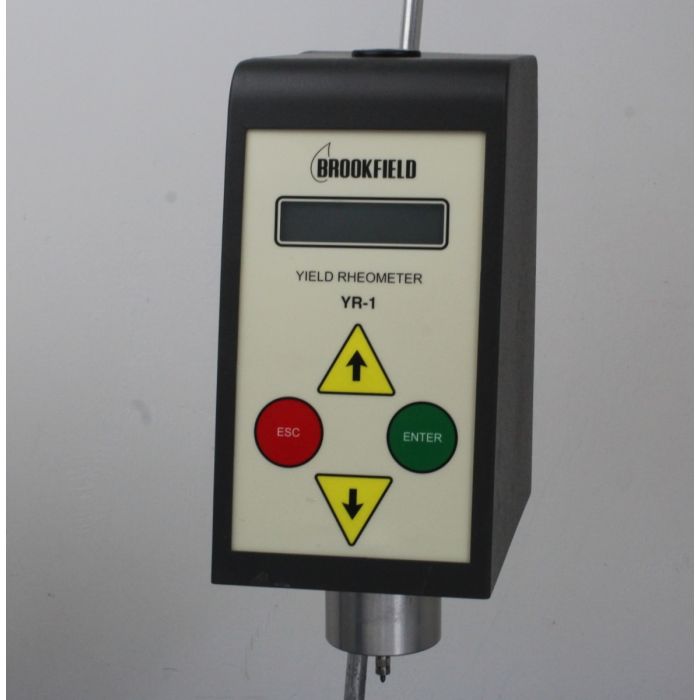

Brookfield YR-1 Yield Stress Rheometer

Brookfield YR-1 Yield Stress Rheometer

HBYR1

A new low-cost QC tool to enhance material characterization

Direct readout of yield stress
Simple to use
Excellent repeatability
Affordable

YR-1 measures yield stress behavior of materials. Push-button operation gives technicians ability to make quick, repeatable QC tests with minimal training. Test results are displayed as single yield stress number

Computer programmable using EZ-Yield software. Features a simple parameter menu for set up of 10 different test programs. Test parameters include: test number and name, spindle #, immersion mark, pre-shear (rpm), wait time before test startup, run speed (rpm), and low & high yield control limits (Pa) for QC use.

Streaming data can be viewed and test data — torque vs. time, stress vs. strain — is displayed in both tabular and graphical formats on a PC when using EZ-Yield software

Applications
1/4 RV SERIES — VERY LOW YIELD
Juices Beverages

RV SERIES — LOW YIELD
Food Products Shampoo Gels Yogurt Hair Gels

HB SERIES — MEDIUM YIELD
Chocolate Ketchup Food Products Personal Care Hand Cream Products Jelly Toothpaste Lotions

5xHB SERIES — HIGH YIELD
Adhesive Caulk Pastes Cheese Spread Peanut Butter Fruit Preserves Shortening

PDF Manual

Serial# YR72522

Software and Spindles NOT included. These can be sourced from Brookfield Ametek
