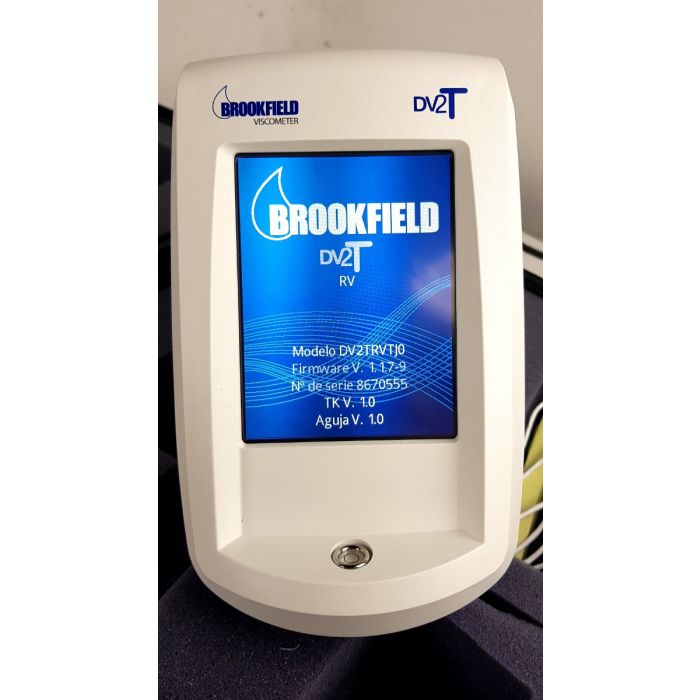

Brookfield DV2T RV Viscometer

Brookfield DV2T RV, Touch Screen Viscometer

Including Service and Calibration at time of Sale

Precision is most important when it comes to measuring viscosity. With Brookfield DV2T Viscometers, laboratory viscosity measurement is now easy and more accurate.

Brookfield is an ISO 9001:2015 certified world leader in viscosity standards. Our DV2T - LV (Low Viscosity) Torque Range is ideal for checking the viscosity of the thinnest materials like inks, oils, and solvents. It is built to give you an accuracy of ±1.0% of range with displayed test data.

The DV2T Viscometer offers powerful new programming capabilities and result analysis, including data averaging and QC limits with alarms. Using the new Program Generator Software, you can create user instructions with multi-step test protocols.

The 5-inch color display guides you through test creation and data gathering for fast and easy laboratory viscosity measurements. For your ease of use, test data can be recorded directly on a local printer or sent to a PC. We also offer optional RheocalcT Software for additional automated control and data collection.

YEAR: 2015 Model

VISCOSITY RANGE SPEEDS
cP (mPa•s)
MODEL Min. Max. RPM Number of Increments
DV2TRV 100†† 40M 0.1-200 200

SPRING TORQUE
MODEL Dyne-cm Milli Newton-m
DV2TRV 7,187.00 0.7187

FEATURES:

5-inch full color, touch screen display supports multiple languages
Displayed information:
Viscosity (cP/mP·s)
Temperature (°C/°F)
Shear rate/stress
% torque
Spindle/speed
Step program status
Enhanced security with customizable user levels and password access. Complies with regulatory requirements such as 21 CFR Part 11.
Built-In options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on-screen data comparison
Auto-range shows maximum viscosity measured with any spindle/speed combination
USB PC interface provides optional computer control and automatic data gathering capability. Download custom test programs with included PG Flash software
Front-facing bubble level for convenient viewing
Built-in temperature probe
Accuracy of ±1.0% of range with displayed test data
Repeatability of ±0.2%
NIST traceable viscosity standards available

Serial Number: 8670555
Power: 90V to 260V 50/60 Hz
