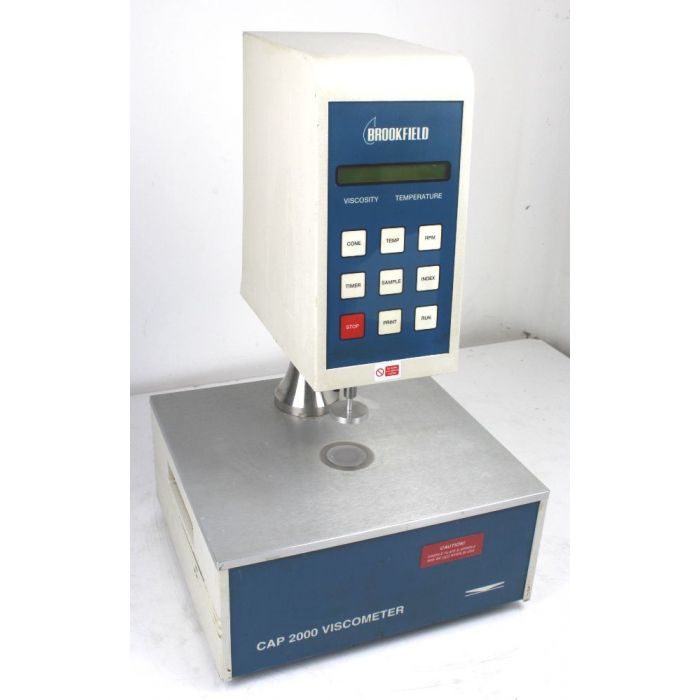

Brookfield CAP 2000L Viscometer

Brookfield CAP 2000L Viscometer.
PDF  Manual

Pre Used, however Fully Refurbished by Brookfield in February 2015


The CAP Viscometer was originally designed to provide a high shear rate test for paints and coatings that simulates material behavior in rolling, brushing, and spraying applications. The versatility of the CAP design makes it a practical tool for any QC or R&D lab requiring quick easy testing of materials, regardless, of application, at high shear rates. Applications include paints, resins, foods, cosmetics, pharmaceuticals, dispersions, coatings, and inks.

    Shear rates from 166 sec-1 to 26,600 sec-1
    Variable shear rate (CAP 2000)
    Cone and plate geometry
    Small sample size (less than 1 ml)
    Automatic cone gap positioning
    Automatic viscosity range calibration
    Rapid sample temperature control on plate surface
    Digital settings and display (CGS or SI units)
    PC control with RS-232 serial interface (CAP 2000) using Brookfield Capcalc software
    Parallel printer interface to document data
    Timed test capability
    Sample number identification
    Easy test set up and clean up
    Rapid test performance
    Temperature range: 5°C to 75°C
    NIST traceable viscosity standards available

Serial# CP45970



CAP2000 is a variable speed viscometer:

    50 to 2000 rpm in 1 rpm steps

Cone Spindle Range Table
Cone Spindle No.
    Cone Angle
    Shear Rate (sec-1)
    Full-Scale Viscosity Range (Poise)
    Sample Size (µl)

    CAP 2000 at 50-2000 RPM
