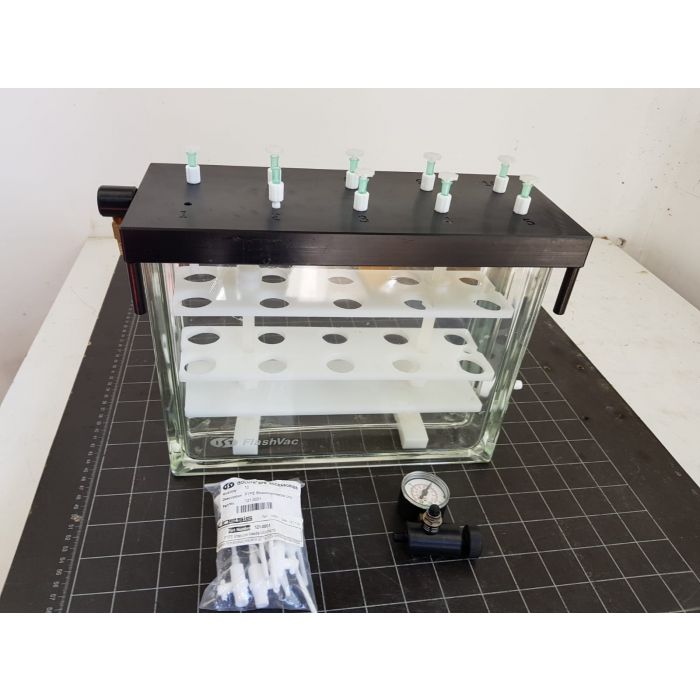

Biotage FlashVac-10 Cartridge Processing Station

Biotage FlashVac-10 Cartridge Processing Station
Solid Phase Extraction

FlashVac Sample Processing Manifolds are used to process the complete range of ISOLUTE work-up columns. The manifolds can be used for Catch & Release and scavenging SPE, filtration, and off-line sample loading prior to flash chromatography. The FlashVac-10 manifold can process up to ten 150 mL columns simultaneously, and the FlashVac-20 manifold up to twenty 25 mL columns. The FlashVac-20 manifold can also process ten 70 or 150 mL columns in a staggered setup. Both units can accommodate 19 and 25 mm collection vessels, up to 150 mm in length. The FlashVac manifolds are manufactured from glass and high density polyethylene and are inert to commonly used synthesis and reaction work-up solvents. The vacuum control is positioned remotely from all solvent flow and collection. This prevents corrosion so flow rate control is not compromised. The vacuum control allows flow rates to be set for processing the required number of columns. If additional or individual flow rate control is required, the FlashVac-10 and -20 manifolds can be fitted with PTFE stopcocks or stopcock/needle units. The FlashVac manifolds are fitted with stainless steel needles as standard. Each FlashVac manifold is fully tested during manufacturing and fitted with a vacuum relief valve.
