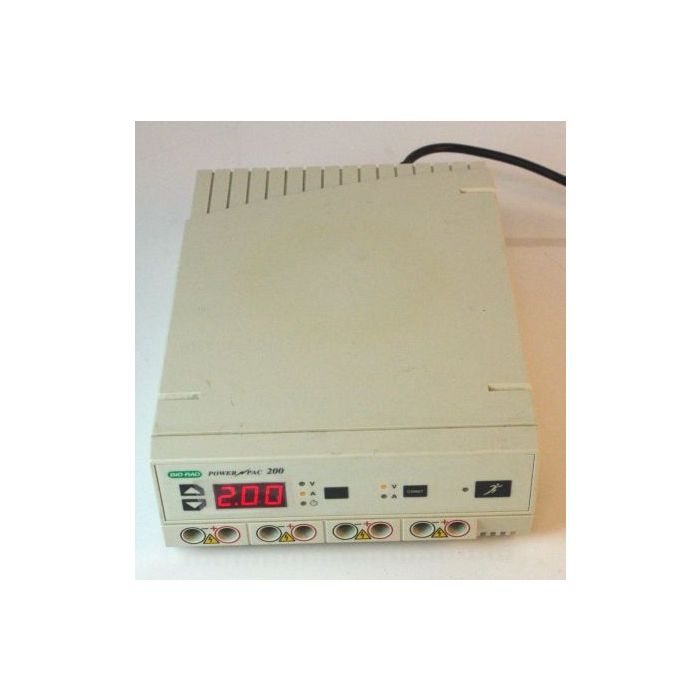

BioRad PowerPac 200 Electrophoresis Power Supply

BioRad PowerPac 200 Electrophoresis Power Supply

Bio-Rad offers a complete line of high-quality electrophoresis power supplies for the most demanding electrophoretic techniques. From basic to high-voltage capacity, Bio-Rad power supplies provide simple programming in a compact, stackable case

The BioRad PowerPac 200 is a power supply ideal for SDS-PAGE and western blotting. As its name indicates, it reaches only 200V but it can withstand up to 2 Amps. This makes this power supply ideal for running and transferring protein resolving gels, such as BioRad's (or other) "mini" gels as well as common DNA electrophoresis (agarose) gels. This power supply can be run at constant voltage (for SDS-PAGE and agarose gels) or at constant current (for western transfers), but it cannot be used for running sequencing gels or any gel requiring voltage above 200V.

Voltage output: Adjustable from 5 to 200 volts in increments of 1 volt.
Current output: Adjustable from 0.01 to 2.00 Amps (2000 mA) in increments of 0.01 A.
Power output: 200 watts (maximum)

Up to four electrophoresis cells can be connected in parallel to the power supply

The PowerPac 200 and PowerPac 300 power supplies offer a number of features, including the following:
• Constant voltage or constant current operation with automatic crossover.
• Timer control.
• Viewing angle adjustment.
• 3-digit LED display.
• Stackable case.
• Automatic detection of no-load conditions and rapid changes in resistance.
• Automatic completion of a run interrupted by a power failure, when user enabled.
• Ground leak detection

Dimensions: 29 (L) x 21 (W) x 8 (H) cm

Serial# 285BR01782

PDF Manual included
