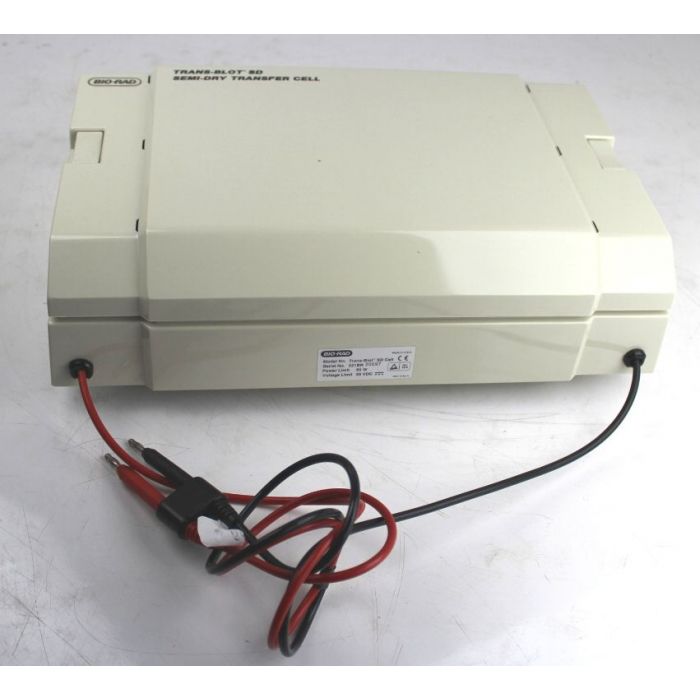

BIO-RAD Trans-Blot SD Semi-Dry Transfer Cell

BIO-RAD Trans-Blot SD Semi-Dry Transfer Cell



The Trans-Blot® SD semi-dry transfer cell allows fast, efficient, economical blotting without a buffer tank or gel cassettes.



Features and Benefits



•Transfers take place in as little as 15–60 min
•Minimal buffer requirements save money
•Capacity to transfer up to four Mini-PROTEAN® precast or handcast gels, or three Criterion™ gels
•Single-step locking system allows simple, speedy setup
•Platinum-coated titanium anode plate electrodes and stainless-steel cathode plate electrodes provide consistent and reliable transfers, durability, and long life
•Extra plastic templates required by other semi-dry blotters to prevent electrode short circuits are unnecessary
•Safety cover breaks the electrical current when lifted, preventing electrical shock



Applications and Uses
•Western blotting
•Nucleic acid transfer
•Northern and Southern blot transfers in 10–35 min
•Transfer of DNA and RNA using the unique agarose gel semi-dry blotting support frame



Maximum gel size (W x L), cm  24 x 16
Buffer requirement, ml  200
Gel capacity  4 Mini-PROTEAN® precast or handcast gels, 3 Criterion™ gels, 1–3 PROTEAN® II gel sandwiches



Serial number 221 BR20697
Dims 40cm (D) x 24cm (W) x 13cm (H)
PDF Manual
