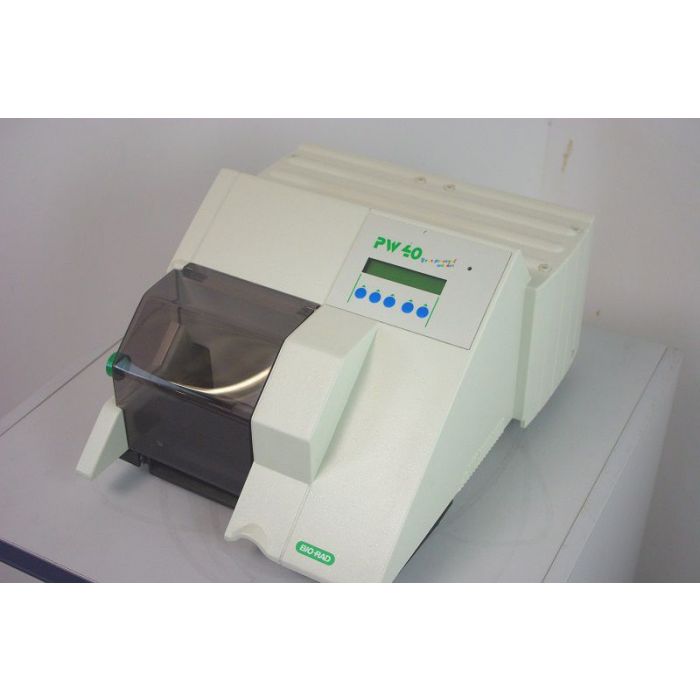

BIO-RAD MICROPLATE WASHER PW40

BIO-RAD MICROPLATE WASHER PW40

User Manual

Used

The PW40 microplate washer is compact and programmable, with an 8-channel washing comb, a vacuum pump, and built-in dispensing pumps. The PW40 microplate washer is compatible with microplate strips that have U-, V-, or flat-bottom wells. The position of the aspiration and dispensing heads over the microplate wells can be adjusted by the user both vertically and horizontally to within 0.1 mm. The volume of the washing and rinsing solution bottles and the waste bottle is 2 L. A cover protects the immediate environment from aerosols. The autoclavable microplate support is easy to remove for decontamination. The PW40 microplate washer is easy to program and offers a wide choice of washing methods, which can be combined according to the user's requirements. A logical sequence of questions enables the operator to program washes easily. All Bio-Rad tests are prerecorded.

Bio-Rad PW40 Microplate Washer for 96-well plates. Fully / easily programmable. Large choice of washing methods which can be combined for the most complex sequences washing.  User-guided washer operation and programming via two-line liquid crystal display showing current system status.  Simple daily maintenance, easy decontamination, and aerosol cover protects the user and work area.

• Serial No: EB4F359307
• D45 cm x 36 cm x 24 cm
• 110-120 V/220-240 V: 50-60 Hz
• Disp. Washing  Volume 50-3,000 µl per well
• Residual volume <2 µl per well
• Operating modes: Draining Priming Rinsing
• Soak time: 0-60 min per 1 sec interval (plate)

                    0-16 min per 1 sec interval (strip)
