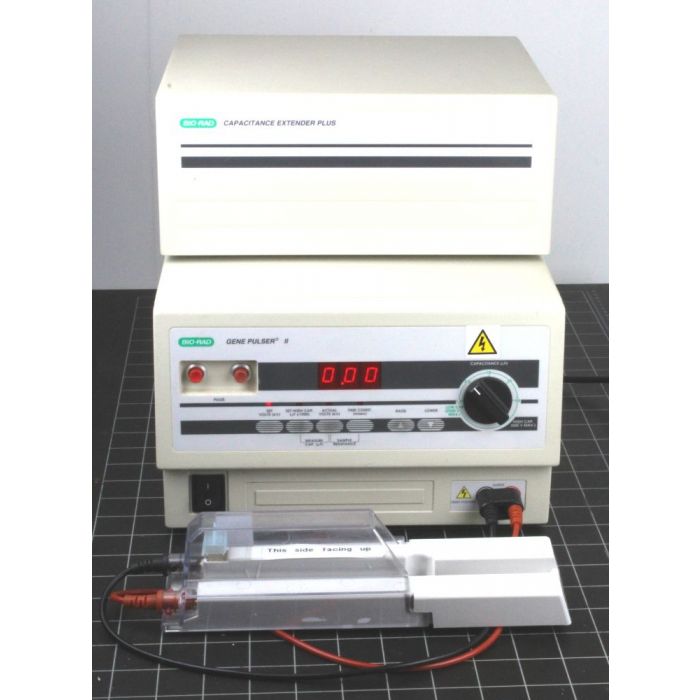

BIO-RAD Gene Pulser II Electroporator and Capacitance Extender Plus

BIO-RAD Gene Pulser II Electroporator and Capacitance Extender Plus



The Gene Pulser II system uses the Pulse Trac™ waveform delivery system to generate the most accurate exponential decay pulses possible for optimal cell transformation within an electroporation cuvette. The Pulse Trac delivery system accurately calculates the time constant of each pulse based on what is actually delivered to the sample.



Gene Pulser II System:
Maximum output voltage and current 2,500 V at 125 amp peak (normal load); limited to 1,500 A during arc.
Output waveform Pulse Trac exponential decay with RC time constant dependent on sample and capacitor selected
Output voltage adjustment 50–2,500 V range (depending on the capacitor) with 10 V adjustment precision for the high voltage range and 2 V for the low-voltage range (50–500 V).
Ambient operating environment Temperature 0–35 °C Humidity 0–95% without condensation
Regulatory Passes requirements of IEC 1010. In addition, the system passes requirements for FCC, Class A.
Dimensions 34 x 31 x 19 cm
Weight 10.41 kg



Capacitance Extender Plus System:
Selectable capacitors, μF 26 to 1,076 μF, in 26 μF increments; measured with Gene Pulser II apparatus
Dimensions 23 x 31 x 9.7 cm
Weight 3.64 kg



Serial# 341BR2147
            342BR01370



PDF Manual Available
