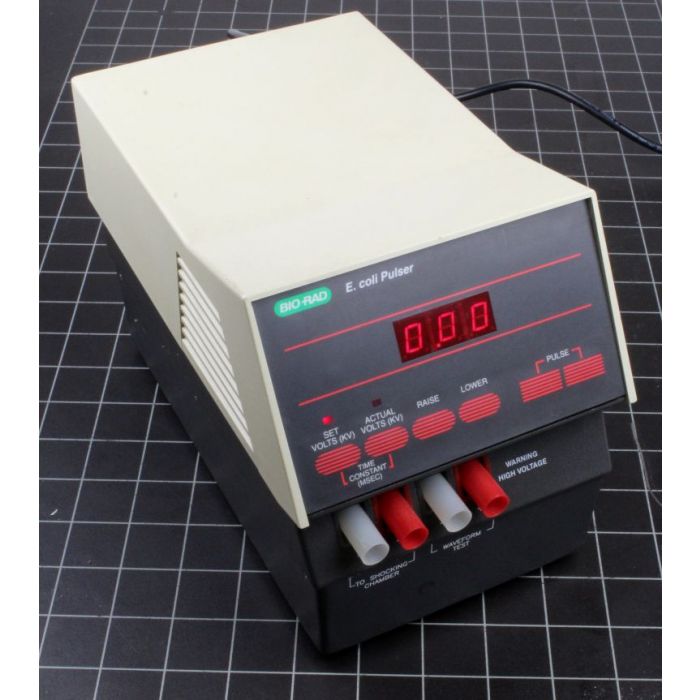

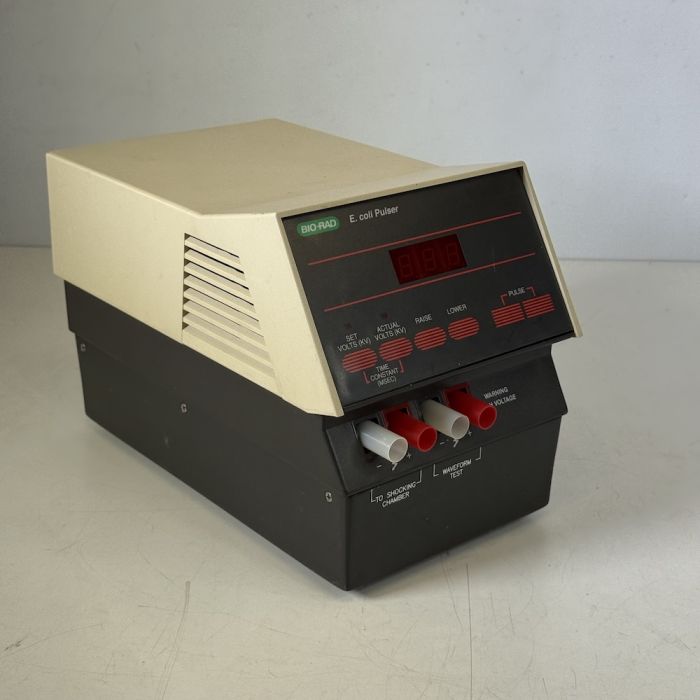

BIO-RAD E.coli Pulser
Model 1652104
Used for the electroporation of Escherichia coli where pulses of very high field strength are applied to samples of small volume and high resistance. The internal circuitry of the E. coli Pulser apparatus greatly reduces the incidence of arcing at high voltage, and is protected if a high voltage, high current arc does occur. The unit is designed to fire into a high resistance sample
Maximum output voltage and current 2,500 V peak into ³3.3 k½ load limited to 125 amp peak max.
Output waveform Decaying exponential waveform with RC time constant of 5 msec, assuming loads of ³3.3 k½
Output voltage adjustment Voltage adjustable in 200-2,500 V range with 10 V resolution, 2 preprogrammed voltage steps
Ambient operating temperature 0 to 35 °C
Dimensions (L x W x H) 29 x 17 x 19 cm
Weight 7.0 kg
Output waveform Decaying exponential waveform with RC time constant of 5 msec, assuming loads of ³3.3 k½
Output voltage adjustment Voltage adjustable in 200-2,500 V range with 10 V resolution, 2 preprogrammed voltage steps
Ambient operating temperature 0 to 35 °C
Dimensions (L x W x H) 29 x 17 x 19 cm
Weight 7.0 kg
Serial# 943BR0225
PDF Manual Available
| SKU | K003 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
