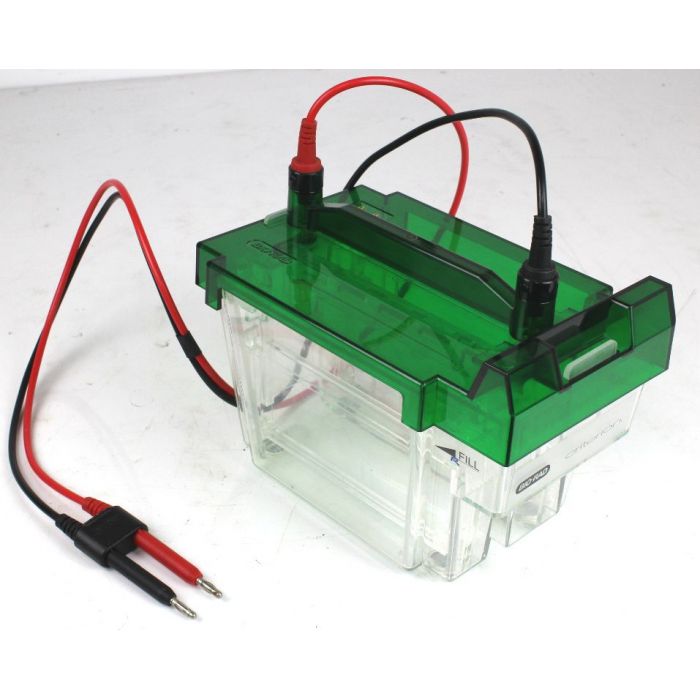

BIO-RAD Criterion™ Vertical Electrophoresis Cell

BIO-RAD Criterion™ Vertical Electrophoresis Cell

The Criterion Cell is a midi-format vertical electrophoresis cell designed to run one or two Criterion Precast Protein Gels or handcast midi gels, which are wider and longer than traditional mini gels (13.3 x 8.7 cm vs. 8.6 x 6.8 cm). With a single Criterion Gel, you can run up to 26 samples in less than 1 hr or accommodate 11 cm ReadyStrip™ IPG Strips for 2-D applications.

Features and Benefits of the Criterion Cell:

•     Compact size that requires only 1 L running buffer
•     Built-in wedge on the lid to open gel cassettes in a single step
•     Locator slots built into the tank walls to easily and quickly slide cassettes into position

Number of gels     1–2
Precast gels      Criterion™ precast gels
Handcast gels     Gels prepared in Criterion empty cassettes
Gel size (W x L x thickness)     13.3 x 8.7 x 0.1 cm
Total buffer volume     1 L
Typical running conditions     200 V constant
Recommended power supply     PowerPac™ Basic or PowerPac HC
Dimensions (W x L x H)     14.4 x 22.3 x 19.5 cm
Weight     0.86 kg (1.9 lb)

Serial# 135BR 0018456

            135BR 0018466

PDF Manual

Note this item does not include the sample loading guides, these are available from BIO-RAD at GBP 17.00 each
