BIO-RAD CFX Connect Real-Time PCR Detection System

BIO-RAD CFX Connect Real-Time PCR Detection System

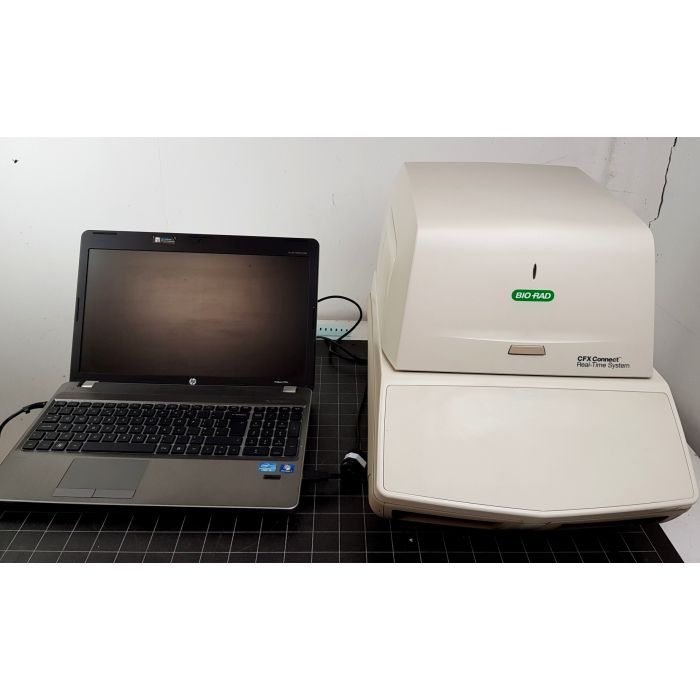

Two-color real-time PCR detection system, includes CFX Connect Thermal Cycler Chassis, CFX Connect Optical Reaction Module, cables, this item complete with Laptop and Software (CFX Manager 3.0)

The CFX Connect Real-Time PCR System provides excellent thermal performance for two-target multiplex PCR and routine detection of single fluorophore experiments.

The CFX Connect Real-Time PCR Detection System offers two-target analysis, excellent thermal cycler specifications, and the same reliable performance as the CFX96 Touch Real-Time PCR Detection System. The system incorporates innovative optical technologies with powerful software to provide maximal reliability and efficiency for all your real-time PCR needs.

Key Features and Benefits
The CFX Connect Real-Time PCR Detection System offers:

Easy startup — obtain great results right away with factory-calibrated dyes, quick setup, and intuitive software
Effortless optimization — save time and reduce costs by optimizing assays in a single run using the thermal gradient

Specifications
Chassis CFX Connect
Maximum ramp rate, °C/sec5
Average ramp rate, °C/sec 3.3
Heating and cooling method Peltier
Lid, °C Heats up to 105

Temperature
Range, °C 0–100
Accuracy, °C ±0.2 of programmed target at 90°C
Uniformity, °C ±0.4 well-to-well within 10 sec of arrival at 90°C

Gradient
Operational range, °C 30–100
Programmable span, °C 1–24

Optical Detection
Excitation 3 filtered LEDs
Detection 3 filtered photodiodes
Range of excitation/emission wavelengths, nm 450–580
Sensitivity Detects 1 copy of target sequence in human genomic DNA
Dynamic range 10 orders of magnitude

Scan Time
All channels, sec 12
FAM/SYBR® Green only, sec 3

Software
Operating systems
Windows 7, Windows 8, Windows 10
Multiplex analysis
Up to 2 targets per well

System
Licensed for real-time PCR Yes
Sample capacity, wells 96
Sample size, µl 1–50 (10–25 recommended)
Communication interface USB 2.0
Electrical approvals IEC, CE
Dimensions (W x L x H), cm/in 33 x 46 x 36/13 x 18 x 14
Weight, kg/lb 21/47

Serial Number: 788BR01216

PDF Quick Start guide and manual
