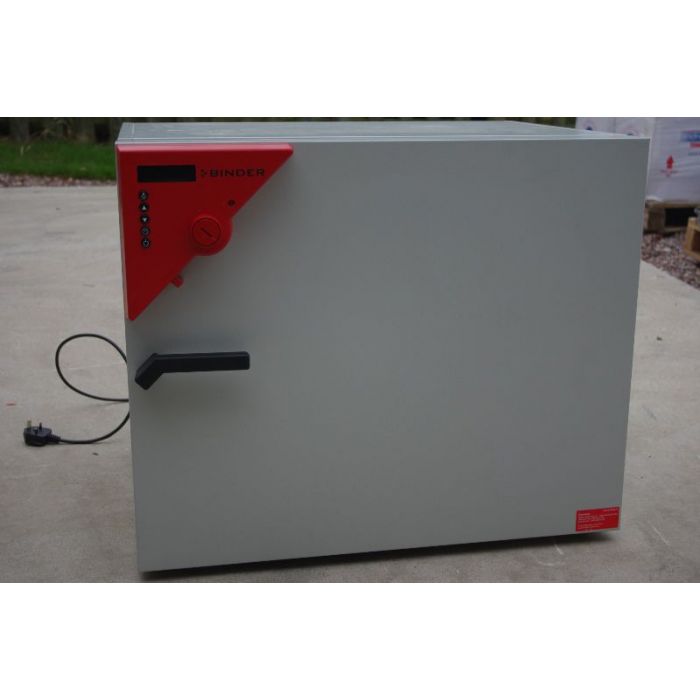

Binder Lab Incubator BD115

Incubator with gravity convection



The BINDER incubator of the BD series with gravity convection is the specialist in long-term and stable continuous operation. This incubator is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media or microbiological heating.



Advantages:
    Safe and reproducible incubation
    Disinfection routine
    Broad range of products and applications



Electronically controlled APT.line™ preheating chamber assuring temperature accuracy and reproducible results



Temperature range from 5 °C above room temperature to 100 °C



DS control with integrated timer 0 to 99 hrs



Digital temperature setting with an accuracy of a tenth of a degree
Independent temperature safety device class 3.1 (DIN 12880) with optical alarm



Adjustable ventilation by means of front ventilation flap slide and rear exhaust Ø 50 mm



Inner glass door



RS 422 interface for communication software APT-COM™ DataControlSystem



Units up to 115 liters are stackable



2 chrome-plated racks included



  Exterior dimensions
 Housing:
 Width (mm) 835  Height (incl. feet/castors) (mm) 705
 Depth (plus connections and fittings) (mm)  645
 Depth (incl. connections and fittings) (mm)  740
 Wall clearance, rear (mm)  100
 Wall clearance, side (mm)  160
 Steam space volume (l)  142
 Number of doors (ea.)  1

 Interior dimensions
 Width (mm)  600
 Height (mm)  480
 Depth (mm)  400
 Interior volume (l)  115
 Racks (number standard/max.)  2 / 5
 Load per rack (kg)  20
 Permitted total load (kg) 50
 Weight (empty) (kg)  61

 Temperature data
 Temperature range approx. 5 °C above ambient temperature to 100°C
 Temperature variation  at 37 °C (± K)  0,4
                         at 50 °C (± K)  0,8
 Temperature fluctuation at 37 °C (± K)  0,1
                         at 50 °C (± K)  0,1
 Warm-up time 1)  to 37 °C (min.) 62
                         to 50 °C (min.) 91
 Recovery time after doors were open for 30 sec. 1) at 37 °C (min.)  5
                                                    at 50 °C (min.)  7

 Electrical data
 IP protection class acc. to EN 60529  IP 20
 Voltage (± 10%) 50/60 Hz (V)  230
 Nominal power (kW)  0,4
 Energy consumption at 37 °C (W)  20



Serial# 06-06285
