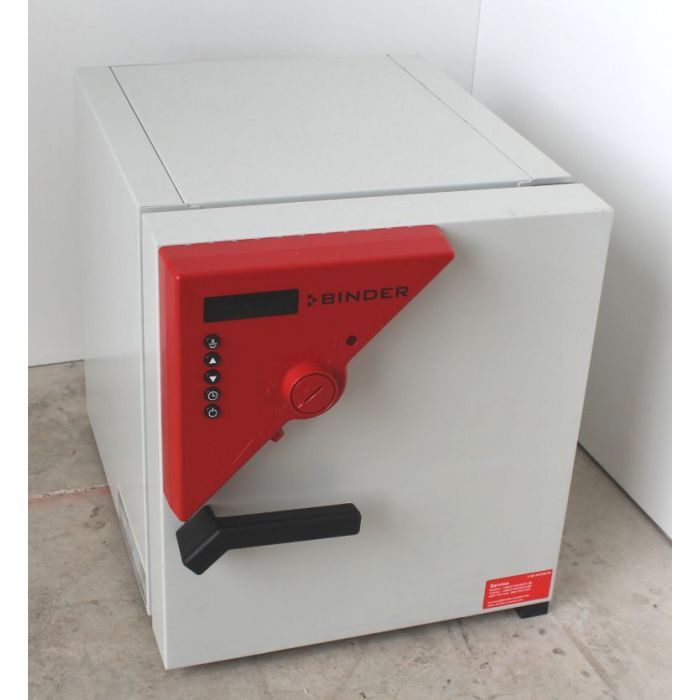

Binder BD23 Lab Incubator

Model 9010-0187

Incubator with gravity convection

The BINDER incubator of the BD series with gravity convection is the specialist in long-term and stable continuous operation. This incubator is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media or microbiological heating.

Advantages:
    Safe and reproducible incubation
    Disinfection routine
    Broad range of products and applications

Electronically controlled APT.line™ preheating chamber assuring temperature accuracy and reproducible results

Temperature range from 5 °C above room temperature to 100 °C

DS control with integrated timer 0 to 99 hrs

Digital temperature setting with an accuracy of a tenth of a degree
Independent temperature safety device class 3.1 (DIN 12880) with optical alarm

Adjustable ventilation by means of front ventilation flap slide and rear exhaust Ø 50 mm

Inner glass door

RS 422 interface for communication software APT-COM™ DataControlSystem

Units up to 115 liters are stackable

2 chrome-plated racks included

  Exterior dimensions
 Housing:
 Width (mm) 435  Height (incl. feet/castors) (mm) 495
 Depth (plus connections and fittings) (mm)  520
 Depth (incl. connections and fittings) (mm)  625
 Wall clearance, rear (mm)  100
 Wall clearance, side (mm)  160

 Interior dimensions
 Width (mm)  222
 Height (mm)  330
 Depth (mm)  277
 Interior volume (l)  20
 Racks (number standard/max.)  2 / 3
 Load per rack (kg)  12
 Permitted total load (kg) 25
 Weight (empty) (kg)  26

 Temperature data
 Temperature range approx. 5 °C above ambient temperature to 100°C
 Temperature variation  at 37 °C (± K)  0.5
 Temperature fluctuation at 37 °C (± K)  0.2
 Warm-up time 1) to 37 °C (min.) 49
 Recovery time 30 sec after doors were open 1) at 37 °C (min.)  3


 Electrical data
 IP protection class acc. to EN 60529  IP 20
 Voltage (± 10%) 50/60 Hz (V)  230
 Nominal power (kW)  0,2
 Energy consumption at 37 °C (W) 11

PDF Manual

Serial# 03-54208
