Binder 9020-0337 KBWF720, 700 Litres, Growth Chamber

Sold
Wanted
SKU
AS283

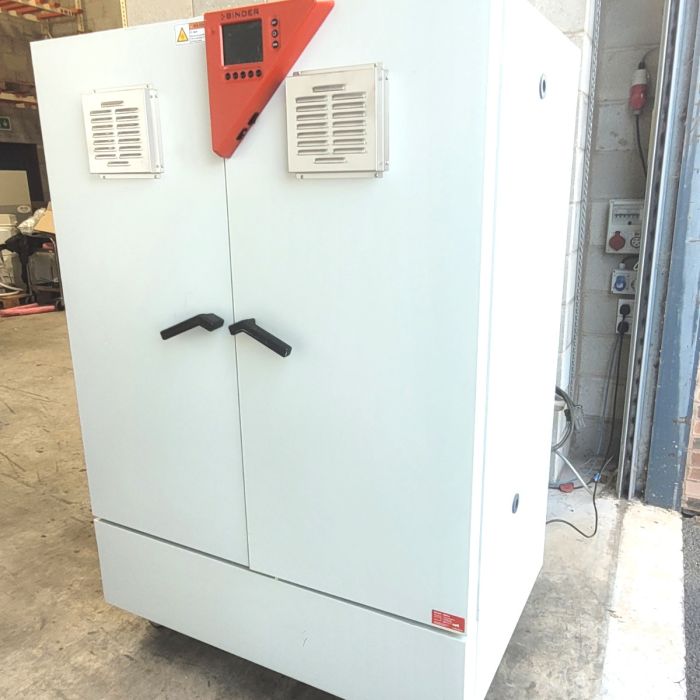

Binder 9020-0337 KBWF720, 700 Litres
Growth chamber with UV light and humidity.



Model Year 2009

The BINDER climate chamber with illumination of the KBW series achieves homogeneous light distribution with its natural illumination. That allows this climate chamber to create constant lighting and temperature conditions.

Climate chambers with light and humidity for perfect climate simulation

Climate chambers with light and humidity from BINDER provide ideal growth conditions for plants and other organisms. The growth chambers in the KBWF series have been designed to allow light, humidity, and temperature to be set so as to simulate natural conditions. The temperature can be adjusted with the accuracy of a tenth of a degree between the range of 0 °C to 70 °C, while the humidity can be displayed accurately at increments of a tenth of a percent. The humidification and dehumidification system is controlled by a reliable microprocessor and humidity is regulated with a capacitive humidity sensor and steam humidification. Extensive program controls allow climate conditions to be simulated constantly and very accurately, even over extended periods of time.

Climate chambers with light and humidity for a wide range of tasks

The KBWF series growth chambers come with illumination cassettes as standard – they can be positioned variably and each have five daylight fluorescent tubes.
Plant growth tubes with the ideal spectrum for photosynthesis are available as an option for simulating perfect climate conditions within plant biotechnology, the timber and forestry industry, and the agricultural industry. The climate chambers with light and humidity are also suitable for use within the pharmaceutical and chemical industry, for basic research in quality assurance, and for material testing.
Climate chambers with light and humidity from BINDER are extremely user-friendly as well as guaranteeing constant and accurate performance. The units come with an LCD color monitor and a controller featuring interval programming.

Option fitted, UV lights turn off when doors are opened



Designation KBWF720-230V¹
Option model Standard
Order number 9020-0337
Data
Serie KBWF
Performance Data Temperature
Temperature range with 100% illumination [°C] 10…60
Temperature range without illumination cassettes [°C] 0…70
Performance Data Climate
Humidity range with illumination cassettes, with illumination [% RH] 10…75
Humidity range without illumination [% RH] 10…80
Temperature range with 100% illumination [°C] 20…60
Temperature range without illumination cassettes [°C] 10…70
Lightdata per Illumination Cassettes
Arabidopsis lamps [lx]* 14000
Arabidopsis lamps [W/m²]* 43
Daylight tubes [lx]* 13000
Daylight tubes [W/m²]* 38
Fluora® growth lamps [lx]* 10500
Fluora® growth lamps [W/m²]* 36
Electrical data
Nominal power [kW] 3.5
Phase (Nominal voltage) 1~
Power frequency [Hz] 50
Rated Voltage [V] 200…240
Unit fuse [A] 16
Doors
Inner doors 2
Unit doors 2
Housing dimensions not incl. fittings and connections
Depth net [mm] 890
Height net [mm] 1925
Width net [mm] 1250
Internal Dimensions
Depth [mm] 576
Height [mm] 1250
Width [mm] 973
Measures
Interior volume [L] 700
Load per rack [kg] 45
Net weight of the unit (empty) [kg] 374
Permitted load [kg] 150
Wall clearance back [mm] 100
Wall clearance sidewise [mm] 200
Environment-specific data
Sound-pressure level [dB(A)] 59
Number of shelves (std./max.) 6
