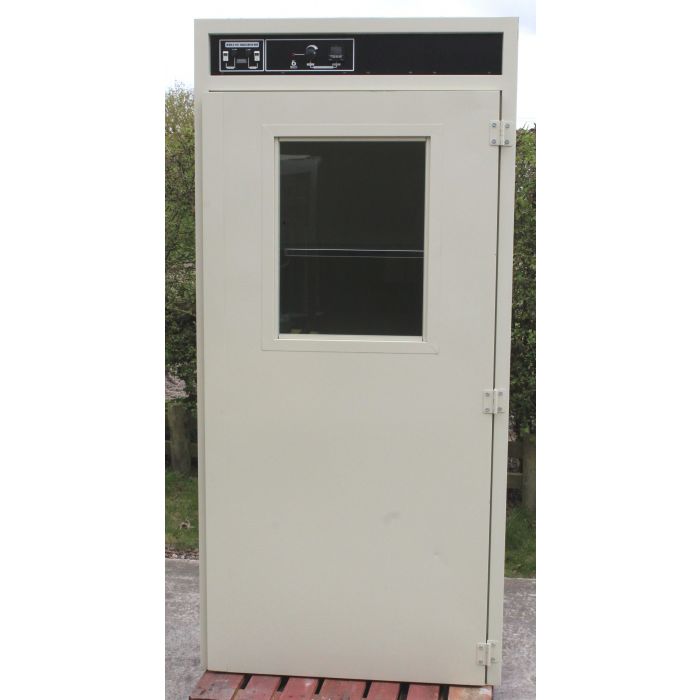

Bellco Glass Roll-In Series Incubator

Bellco Glass Roll-In Series Incubator



Features
Automatic Temperature Control
Safety Thermostat
Large Interior Capacity
Forced Air Circulation



Bellco Roll-In Incubators have 40 cubic feet of volume and are designed for use with Bellco's Cell Production Roller Apparatus (CPRA). The flush-to-floor design allows easy movement of the CPRA in and out of the chamber. Four internal convenience outlets allow simple connection to internally placed appliances such as CPRA, Roller Drums, Magnetic Stirrers, etc. Fans take air from the chamber top, pass it over the 1100 watt heater and re-inject it into the chamber on the bottom back wall. A microprocessor temperature controller and membrane keypad allows simple setting and monitoring of chamber temperature. A safety thermostat is included to prevent over-temperature failures. Shelf brackets are included for mounting of optional shelves. The control panel features indicating lights and dials for automatic control of temperature



SPECIFICATIONS:
Power: 230±10VAC@50/60 Hz line voltage 10 Amp @ 230V, 50 Hz average power consumption (includes 5 amp convenience outlet load)
Wattage: 1500 Watts
Dimensions: Width Depth Height Exterior 41” (104cm) 31” (78cm) 87” (221cm)
                                                     Interior 35” (89cm) 26” (66cm) 76” (193cm)
Volume: 40 cubic ft (1132 L)
Shipping Weight: 700 lbs (318 kg)
Temperature Control Range: Ambient +9°C to 50°C
Temperature Uniformity: ±2° @ 37°C (or better)
Environmental Conditions, operating: indoor use, pollution degree 2, 4° to 50° C relative humidity 0-90% non-condensing Environmental Conditions, non-operating: -10° to 60° C, relative humidity 95% maximum



Serial# PCLRI2-123
